LSM TECH SPECS
TV LIFT 42"-79"
The LSM motorised TV lift mechanism is ideal for concealing screens from approximately 42" to 79" in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSM range is perfect for integrating into a smart home environment.
Design Update - LSM orders from 11-JUL-22 will have an updated mount - see tech sheet for updated design
LID TYPES
The LSM ships with both box enclosure and push flap options as standard.
Box Enclosure
(LSM-BE)
PushFlap
(LSM-PF)

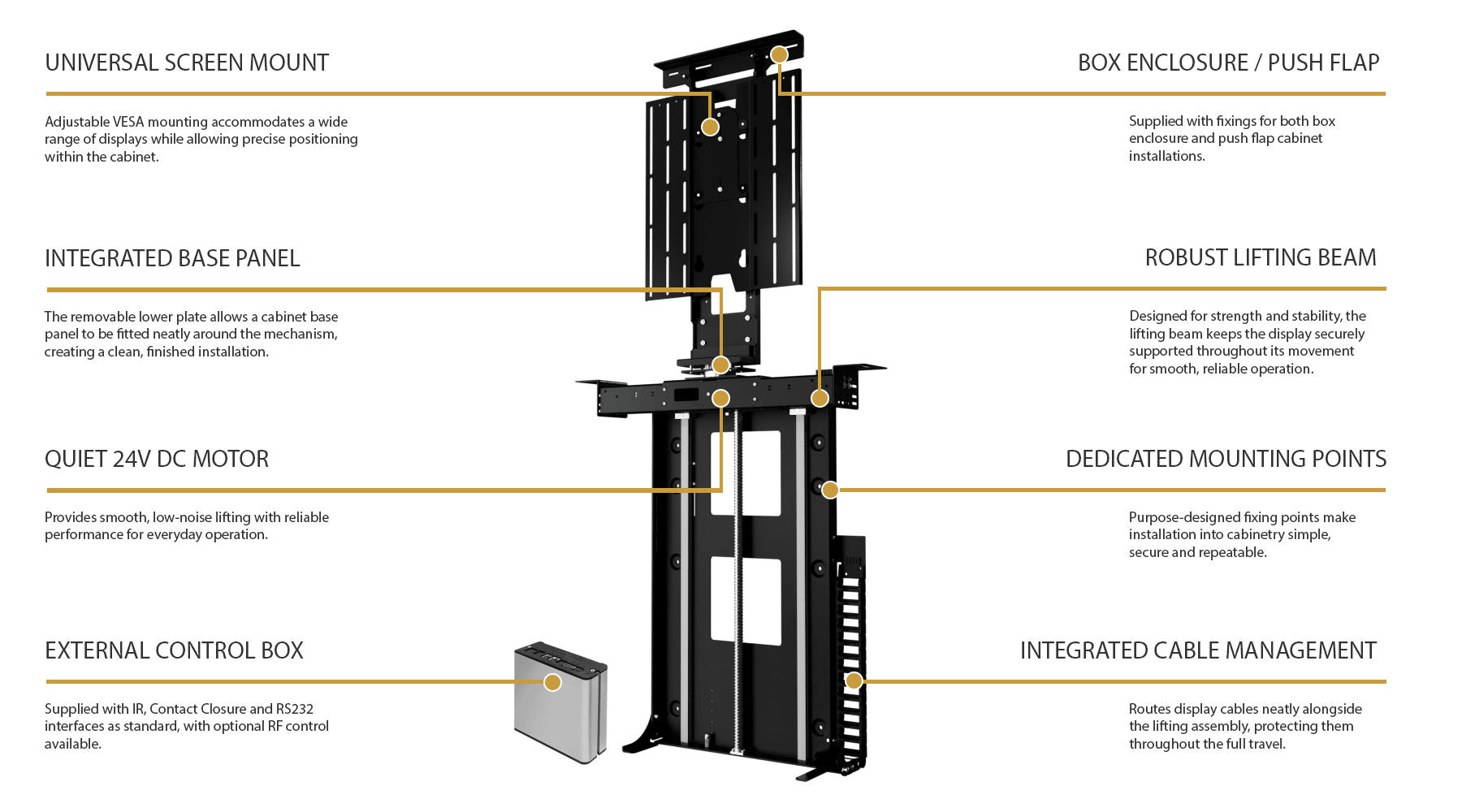

- Supplied with IR, Contract Control, and RS232 control options
- Full Cable Management
- Wide Range of Mounting Options
- 24V DC motor - suitable for direct DC supply
- Marine Suitable Robust Beam
CONCEAL
REVEAL
The higher lifting capacity of the Lift System Medium makes it perfect for living room or media room applications, where larger screens are typically used. This additional weight capacity as well as direct compatibility with the USM (Universal Speaker Mount) also allows for easy soundbar or speaker mounting.
Supplied with IR, Contact Closure and RS232 control options as standard, the entire Lift System Range can be easily installed as standalone units, or easily integrated into the modern smart home. Featuring a robust marine suitable lifting beam, the LSM can be also be used indoors on boats or yachts with no need for additional hardware.
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | LSM4 | LSM5 | LSM6 | LSM7 | LSM8 |
|---|---|---|---|---|---|
| CONTROL BOX DIMENSIONS |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
| CONTROL OPTIONS | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) | CONTACT CLOSURE / IR (RF VERSION AVAILABLE) |
| DECIBEL RATING | 52DB | 52DB | 52DB | 52DB | 52DB |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 |
| INTERNAL CABINET HEIGHT | 820MM (32.28") | 880MM (34.64") | 950MM (37.40") | 1060MM (41.73") | 1270MM (50") |
| LID TYPE | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID & PUSH FLAP OPTIONS SUPPLIED | BOX ENCLOSURE / FIXED LID SUPPLIED |
| MAX LIFTING CAPACITY | 50KG (110LBS) | 50KG (110LBS) | 50KG (110LBS) | 50KG (110LBS) | 80KG (176LBS) |
| MAX LIFTING CAPACITY (MARINE) | 30KG (66LBS) | 30KG (66LBS) | 30KG (66LBS) | 30KG (66LBS) | 40KG (88LBS) |
| MAX SCREEN HEIGHT | 670MM (26.4") | 730MM (28.7") | 800MM (31.5") | 910MM (35.8") | 1025MM (40.3") |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| OUTPUT POWER SUPPLY | YES(12V) | YES(12V) | YES(12V) | YES(12V) | YES(12V) |
| POWER CONSUMPTION | 250W - 500W | 250W - 500W | 250W - 500W | 250W - 500W | 250W - 500W |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V | 240V OR 110V |
| SCREEN SIZES (APPROX) | 42-50" | 50-55" | 55-60" | 60-65" | 65-79" |
| SHIPPING INFORMATION | |||||
| SHIPPING DIMENSIONS |
99 x 84 x 30cm (39 x 33.1 x 11.8") |
104 x 84 x 30cm (40.9 x 33.1 x 11.8") |
111 x 84 x 30cm (43.7 x 33.1 x 11.8") |
121 x 84 x 30cm (47.6 x 33.1 x 11.8") |
137 x 111 x 38cm (53.9 x 43.7 x 15") |
| SHIPPING WEIGHT | 35kg (77lbs) | 36kg (79lbs) | 37kg (82lbs) | 38kg (84lbs) | 96kg (212lbs) |
| DOWNLOADS / SUPPORT | |||||
| TECHNICAL SHEET |
 LSM4 TECH
LSM4 TECH (PRE JUL 22)
|
LSM5 TECH
LSM5 TECH (PRE JUL 22)
|
LSM6 TECH
LSM6 TECH (PRE JUL 22)
|
LSM7 TECH
LSM7 TECH (PRE JUL 22)
|
LSM8 TECH
|
| INSTRUCTIONS |
LSM INSTRUCTIONS
|
||||
| CAD |
 LSM-BE4 CAD
LSM-PF4 CAD
LSM-BE4 CAD (PRE JUL 22)
LSM-PF4 CAD (PRE JUL 22)
|
LSM-BE5 CAD
LSM-PF5 CAD
LSM-BE5 CAD (PRE JUL 22)
LSM-PF5 CAD (PRE JUL 22)
|
LSM-BE6 CAD
LSM-PF6 CAD
LSM-BE6 CAD (PRE JUL 22)
LSM-PF6 CAD (PRE JUL 22)
|
LSM-BE7 CAD
LSM-PF7 CAD
LSM-BE7 CAD (PRE JUL 22)
LSM-PF7 CAD (PRE JUL 22)
|
LSM-BE8 CAD
|
| TECHNICAL SPECIFICATION | |||||
|---|---|---|---|---|---|
| Control Box Dimensions | LSM4 |
150 x 210 x 50mm (5.9 x 8.26 x 1.96") |
|||
| LSM5 |
150 x 210 x 50mm (5.9 x 8.26 x 1.96") |
||||
| LSM6 |
150 x 210 x 50mm (5.9 x 8.26 x 1.96") |
||||
| LSM7 |
150 x 210 x 50mm (5.9 x 8.26 x 1.96") |
||||
| LSM8 |
150 x 210 x 50mm (5.9 x 8.26 x 1.96") |
||||
| Control Options | LSM4 | Contact Closure / IR (RF Version Available) | |||
| LSM5 | Contact Closure / IR (RF Version Available) | ||||
| LSM6 | Contact Closure / IR (RF Version Available) | ||||
| LSM7 | Contact Closure / IR (RF Version Available) | ||||
| LSM8 | Contact Closure / IR (RF Version Available) | ||||
| Decibel Rating | LSM4 | 52dB | |||
| LSM5 | 52dB | ||||
| LSM6 | 52dB | ||||
| LSM7 | 52dB | ||||
| LSM8 | 52dB | ||||
| Finish (Custom Available) | LSM4 | Black Paint - RAL 9005 | |||
| LSM5 | Black Paint - RAL 9005 | ||||
| LSM6 | Black Paint - RAL 9005 | ||||
| LSM7 | Black Paint - RAL 9005 | ||||
| LSM8 | Black Paint - RAL 9005 | ||||
| Internal Cabinet Height | LSM4 | 820mm (32.28") | |||
| LSM5 | 880mm (34.64") | ||||
| LSM6 | 950mm (37.40") | ||||
| LSM7 | 1060mm (41.73") | ||||
| LSM8 | 1270mm (50") | ||||
| Lid Type | LSM4 | Box Enclosure / Fixed Lid & Push Flap Options Supplied | |||
| LSM5 | Box Enclosure / Fixed Lid & Push Flap Options Supplied | ||||
| LSM6 | Box Enclosure / Fixed Lid & Push Flap Options Supplied | ||||
| LSM7 | Box Enclosure / Fixed Lid & Push Flap Options Supplied | ||||
| LSM8 | Box Enclosure / Fixed Lid Supplied | ||||
| Max Lifting Capacity | LSM4 | 50kg (110lbs) | |||
| LSM5 | 50kg (110lbs) | ||||
| LSM6 | 50kg (110lbs) | ||||
| LSM7 | 50kg (110lbs) | ||||
| LSM8 | 80kg (176lbs) | ||||
| Max Lifting Capacity (Marine) | LSM4 | 30kg (66lbs) | |||
| LSM5 | 30kg (66lbs) | ||||
| LSM6 | 30kg (66lbs) | ||||
| LSM7 | 30kg (66lbs) | ||||
| LSM8 | 40kg (88lbs) | ||||
| Max Screen Height | LSM4 | 670mm (26.4") | |||
| LSM5 | 730mm (28.7") | ||||
| LSM6 | 800mm (31.5") | ||||
| LSM7 | 910mm (35.8") | ||||
| LSM8 | 1025mm (40.3") | ||||
| Movement Type | LSM4 | Motorised | |||
| LSM5 | Motorised | ||||
| LSM6 | Motorised | ||||
| LSM7 | Motorised | ||||
| LSM8 | Motorised | ||||
| Output Power Supply | LSM4 | Yes(12V) | |||
| LSM5 | Yes(12V) | ||||
| LSM6 | Yes(12V) | ||||
| LSM7 | Yes(12V) | ||||
| LSM8 | Yes(12V) | ||||
| Power Consumption | LSM4 | 250W - 500W | |||
| LSM5 | 250W - 500W | ||||
| LSM6 | 250W - 500W | ||||
| LSM7 | 250W - 500W | ||||
| LSM8 | 250W - 500W | ||||
| Power Supply | LSM4 | 240V or 110V | |||
| LSM5 | 240V or 110V | ||||
| LSM6 | 240V or 110V | ||||
| LSM7 | 240V or 110V | ||||
| LSM8 | 240V or 110V | ||||
| Screen Sizes (approx) | LSM4 | 42-50" | |||
| LSM5 | 50-55" | ||||
| LSM6 | 55-60" | ||||
| LSM7 | 60-65" | ||||
| LSM8 | 65-79" | ||||
| SHIPPING DIMENSIONS | |||||
| SHIPPING DIMENSIONS | LSM4 |
99 x 84 x 30cm (39 x 33.1 x 11.8") |
|||
| LSM5 |
104 x 84 x 30cm (40.9 x 33.1 x 11.8") |
||||
| LSM6 |
111 x 84 x 30cm (43.7 x 33.1 x 11.8") |
||||
| LSM7 |
121 x 84 x 30cm (47.6 x 33.1 x 11.8") |
||||
| LSM8 |
137 x 111 x 38cm (53.9 x 43.7 x 15") |
||||
| Shipping Weight | LSM4 | 35kg (77lbs) | |||
| LSM5 | 36kg (79lbs) | ||||
| LSM6 | 37kg (82lbs) | ||||
| LSM7 | 38kg (84lbs) | ||||
| LSM8 | 96kg (212lbs) | ||||
| Downloads / Support | |||||
| TECHNICAL SHEET |
LSM-HD-BE8 Tech
LSM-HD-BE9 Tech
LSM8 Tech
LSM9 Tech
LSM4 Tech
LSM5 Tech
LSM6 Tech
LSM7 Tech
LSM4 Tech (Pre JUL 22)
LSM5 Tech (Pre JUL 22)
LSM6 Tech (Pre JUL 22)
LSM7 Tech (Pre JUL 22)
|
||||
| INSTRUCTIONS |
LSM Instructions
|
||||
| CAD |
LSM-BE8 CAD
LSM-BE4 CAD
LSM-BE5 CAD
LSM-BE6 CAD
LSM-BE7 CAD
LSM-PF4 CAD
LSM-PF5 CAD
LSM-PF6 CAD
LSM-PF7 CAD
LSM-BE4 CAD (PRE JUL 22)
LSM-BE5 CAD (PRE JUL 22)
LSM-BE6 CAD (PRE JUL 22)
LSM-BE7 CAD (PRE JUL 22)
LSM-PF4 CAD (PRE JUL 22)
LSM-PF5 CAD (PRE JUL 22)
LSM-PF6 CAD (PRE JUL 22)
LSM-PF7 CAD (PRE JUL 22)
|
||||
