10 SHADE POWER SUPPLY

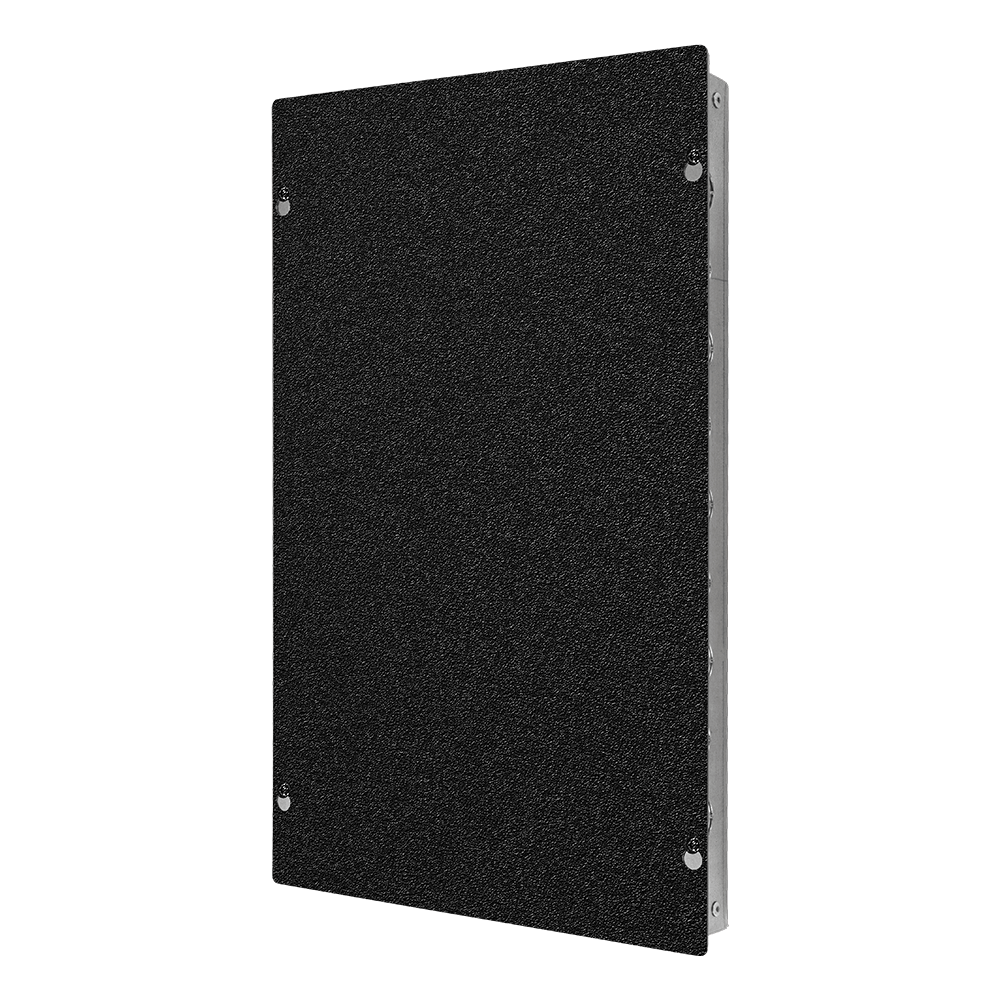

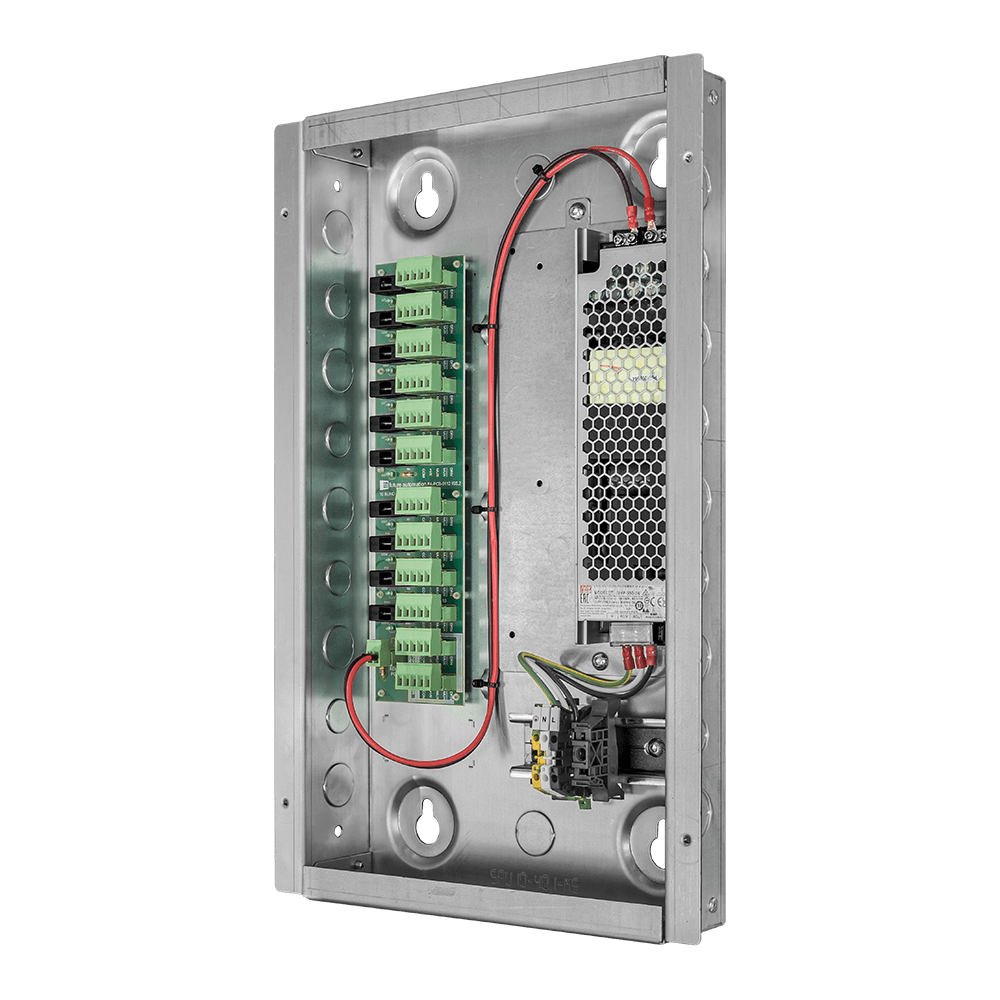

The SPU10 Shade Power Unit is small form factor power and RS485 distribution panel for connecting up to ten 24v or 36v motorised shades. Available with two different output voltages (24v or 36v) the SPU10 Shade Power Unit is suitable for powering low-voltage shade motors from all major manufacturers Somfy, Nice, Lutron and more.

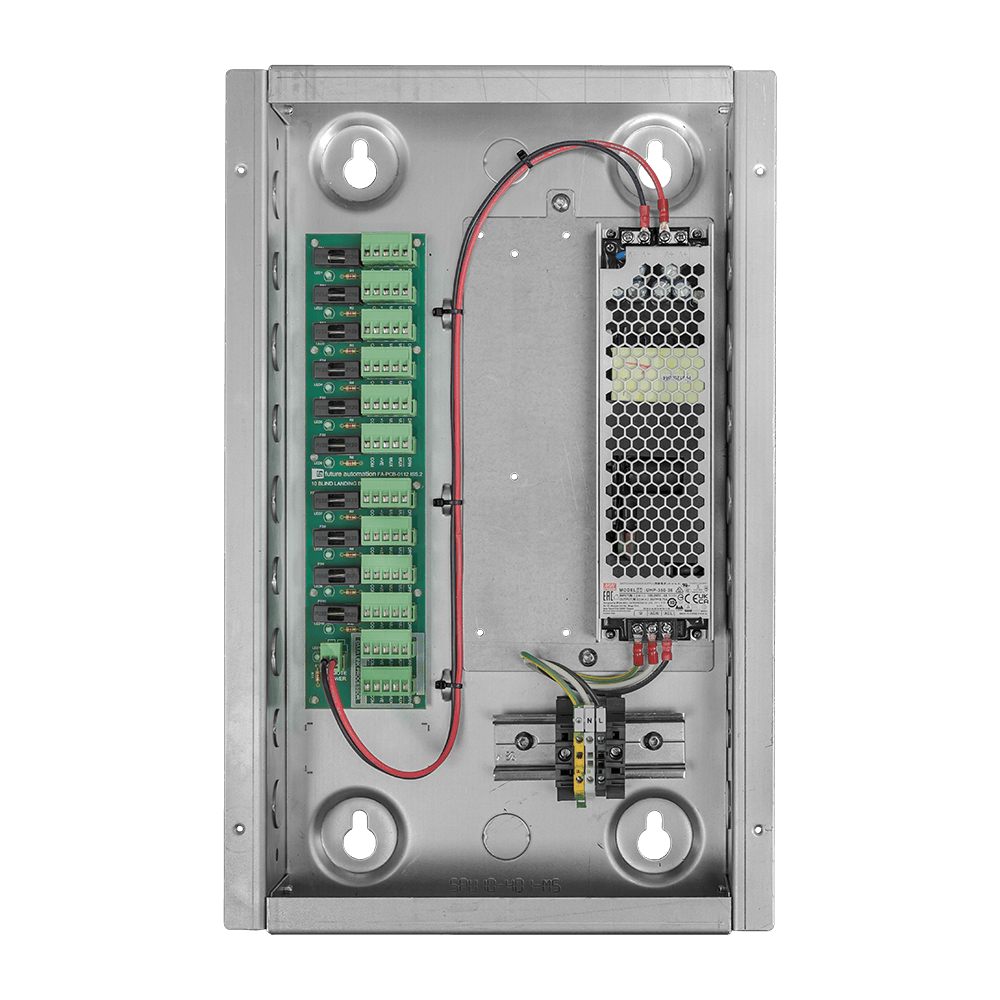

The SPU10 also features RS485 passthrough, allowing a single RS485 input to be split out to up to 10 connected RS485 compatible shade motors. Individually fused outputs help protect the SPU10 and building wiring from possible shorts during shade motor installation and multiple SPU10 panels can also be daisy chained, allowing the RS485 signal to be passed through to multiple panels from one source.

  • Easy installation / mounting
  • Removable front cover
  • In-built cable tie points for neat cable management
  • Side & top cable entry knock outs
HOW TO PURCHASE
DEALER LOGIN

HAND CRAFTED IN HOUSE

Manufacturing Image 1
Manufacturing Image 2 Manufacturing Image 3
Manufacturing Image 4

TECHNICAL SPECIFICATION

PRODUCT CODE SPU10-24 SPU10-36
CONTROL INPUTS 1 X 3-PIN RS485 INPUT (RS485 BUS+, RS485 BUS-, GROUND) 1 X 3-PIN RS485 INPUT (RS485 BUS+, RS485 BUS-, GROUND)
DEPTH FROM WALL 66 MM (2.6") 66 MM (2.6")
FINISH TEXTURED BLACK PAINT COVER, GALVANISED STEEL BOX TEXTURED BLACK PAINT COVER, GALVANISED STEEL BOX
FUNCTIONALITY POWER & RS485 DISTRIBUTION PANEL FOR UP TO 10 X 24V SHADE MOTORS POWER & RS485 DISTRIBUTION PANEL FOR UP TO 10 X 36V SHADE MOTORS
OUTPUTS 10 X 5-PIN 24V DC & RS485 OUTPUT (COMMON, +VE, RS485 BUS+, RS485 BUS-, GROUND) 10 X 5-PIN 36V DC & RS485 OUTPUT (COMMON, +VE, RS485 BUS+, RS485 BUS-, GROUND)
POWER INPUTS 1 X 110V/240V AC INPUT 1 X 110V/240V AC INPUT
PRODUCT DIMENSIONS 454 X 281 X 66MM (17.9 X 11.1 X 2.6") 454 X 281 X 66MM (17.9 X 11.1 X 2.6")
PRODUCT WEIGHT 2.5KG (5.5LBS) 2.5KG (5.5LBS)
WALL MOUNT TYPE 6.5MM (0.26") KEYHOLE SLOTS 6.5MM (0.26") KEYHOLE SLOTS
SHIPPING INFORMATION
SHIPPING DIMENSIONS TBC TBC
SHIPPING WEIGHT TBC TBC
DOWNLOADS / SUPPORT
TECHNICAL SHEET PDF DocumentSPU10-24 TECH
PDF DocumentSPU10-36 TECH
INSTRUCTIONS PDF DocumentSPU10 INSTRUCTIONS
CAD CAD FileSPU10 CAD
DOWNLOADS PDF DocumentSPU10 UKCA DECLARATION OF CONFORMITY PDF DocumentSPU10 CE DECLARATION OF CONFORMITY
TECHNICAL SPECIFICATION
CONTROL INPUTS SPU10-24 1 X 3-PIN RS485 INPUT (RS485 BUS+, RS485 BUS-, GROUND)
SPU10-36 1 X 3-PIN RS485 INPUT (RS485 BUS+, RS485 BUS-, GROUND)
DEPTH FROM WALL SPU10-24 66 MM (2.6")
SPU10-36 66 MM (2.6")
FINISH SPU10-24 TEXTURED BLACK PAINT COVER, GALVANISED STEEL BOX
SPU10-36 TEXTURED BLACK PAINT COVER, GALVANISED STEEL BOX
FUNCTIONALITY SPU10-24 POWER & RS485 DISTRIBUTION PANEL FOR UP TO 10 X 24V SHADE MOTORS
SPU10-36 POWER & RS485 DISTRIBUTION PANEL FOR UP TO 10 X 36V SHADE MOTORS
OUTPUTS SPU10-24 10 X 5-PIN 24V DC & RS485 OUTPUT (COMMON, +VE, RS485 BUS+, RS485 BUS-, GROUND)
SPU10-36 10 X 5-PIN 36V DC & RS485 OUTPUT (COMMON, +VE, RS485 BUS+, RS485 BUS-, GROUND)
POWER INPUTS SPU10-24 1 X 110V/240V AC INPUT
SPU10-36 1 X 110V/240V AC INPUT
PRODUCT DIMENSIONS SPU10-24 454 X 281 X 66MM (17.9 X 11.1 X 2.6")
SPU10-36 454 X 281 X 66MM (17.9 X 11.1 X 2.6")
PRODUCT WEIGHT SPU10-24 2.5KG (5.5LBS)
SPU10-36 2.5KG (5.5LBS)
WALL MOUNT TYPE SPU10-24 6.5MM (0.26") KEYHOLE SLOTS
SPU10-36 6.5MM (0.26") KEYHOLE SLOTS
SHIPPING DIMENSIONS
SHIPPING DIMENSIONS SPU10-24 TBC
SPU10-36 TBC
SHIPPING WEIGHT SPU10-24 TBC
SPU10-36 TBC
DOWNLOADS / SUPPORT
TECHNICAL SHEET PDF DocumentSPU10-24 Tech
PDF DocumentSPU10-36 Tech
INSTRUCTIONS PDF DocumentSPU10 Instructions
CAD CAD FileSPU10 CAD
DOWNLOADS PDF DocumentSPU10 UKCA Declaration of Conformity PDF DocumentSPU10 CE Declaration of Conformity
