PS80 TECH SPECS
ARTICULATED TV WALL MOUNT 80" - 110"
This PS Bracket allows screens up to 110” to be moved smoothly and easily in either direction. The PS Bracket allows perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing screens in walls for a completely flush finish.
- Solid Steel Construction Holds Screen Securely
- Uniquely designed scissor arm for safe and smooth movement, with minimal effort required
- Bi-Directional Swivel up to 45 degrees in either direction
| THE PS BRACKET IS AVAILABLE IN A RANGE OF SIZES TO SUIT DIFFERENT INSTALLATIONS | ||||
|---|---|---|---|---|
| APPROX SCREEN SIZE | MAX EXTENSION FROM WALL | MAX SWIVEL | MAX WEIGHT | PRODUCT |
| 32 - 43" | 300MM (11.8") | UP TO 50° (SCREEN WIDTH DEPENDENT) |
60KG (132LBS) | PS32 |
| 40 - 75" | 400MM (15.7") | UP TO 50° (SCREEN WIDTH DEPENDENT) |
60KG (132LBS) | PS40 |
| 55 - 75" | 500MM (19.7") | UP TO 50° (SCREEN WIDTH DEPENDENT) |
60KG (132LBS) | PS55 |
| 65 - 75" | 595MM (23.4") | UP TO 50° (SCREEN WIDTH DEPENDENT) |
60KG (132LBS) | PS65 |
| 80 - 110" | 569MM (22.4") | UP TO 45° (SCREEN WIDTH DEPENDENT) |
120KG (265LBS) | PS80 |
| 110+" | VARIABLE | UP TO 45° (SCREEN WIDTH DEPENDENT) |
VARIABLE | PS80-CUSTOM |
Near flush to wall TV mounting is also possible thanks to the optional WB80 in wall mounting box.

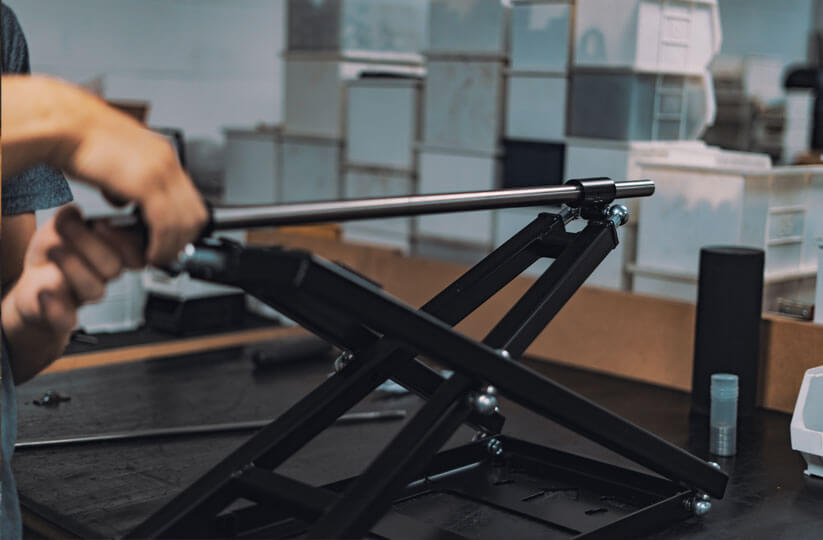

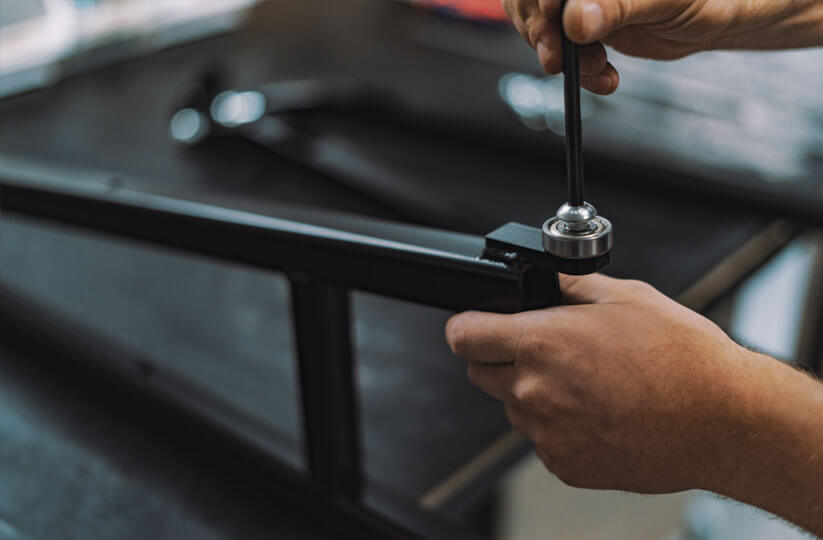

HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | PS80 |
|---|---|
| BOLT PATTERN | (H) 700, 600, 500, 400, 300, 200, 100 (W) 800, 700, 600, 500, 400, 300, 200, 100 |
| FINISH | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE |
| MARINE SUITABLE | NO |
| MAX EXTENSION FROM WALL | 569MM (22.4") |
| MAX ROTATION | UP TO 45° EACH WAY (SCREEN WIDTH DEPENDENT) |
| MAX SCREEN DIMENSIONS | LIMITED BY WEIGHT AND DESIRED ROTATION ANGLE |
| MAX WEIGHT CAPACITY | 120KG (265LBS) |
| MIN DEPTH FROM WALL | 84MM (3 5/16") |
| MOVEMENT TYPE | MANUAL |
| OUTDOOR SUITABLE | NO |
| PRODUCT DIMENSIONS | 795 X 84MM (31 5/16 X 3 5/16") |
| RECOMMENDED SCREEN SIZES | 80" - 110" |
| SHIPPING INFORMATION | |
| SHIPPING DIMENSIONS | 98 x 41 x 20cm (38.6 x 16.1 x 7.9") |
| SHIPPING WEIGHT | 20kg (44lbs) |
| DOWNLOADS / SUPPORT | |
| TECHNICAL SHEET |
 PS80 TECH
|
| INSTRUCTIONS |
PS80 INSTRUCTIONS
|
| CAD |
 PS80 CAD
|
