PLF-S-DRL TECH SPECS
IN-FLOOR TV LIFT & SWIVEL

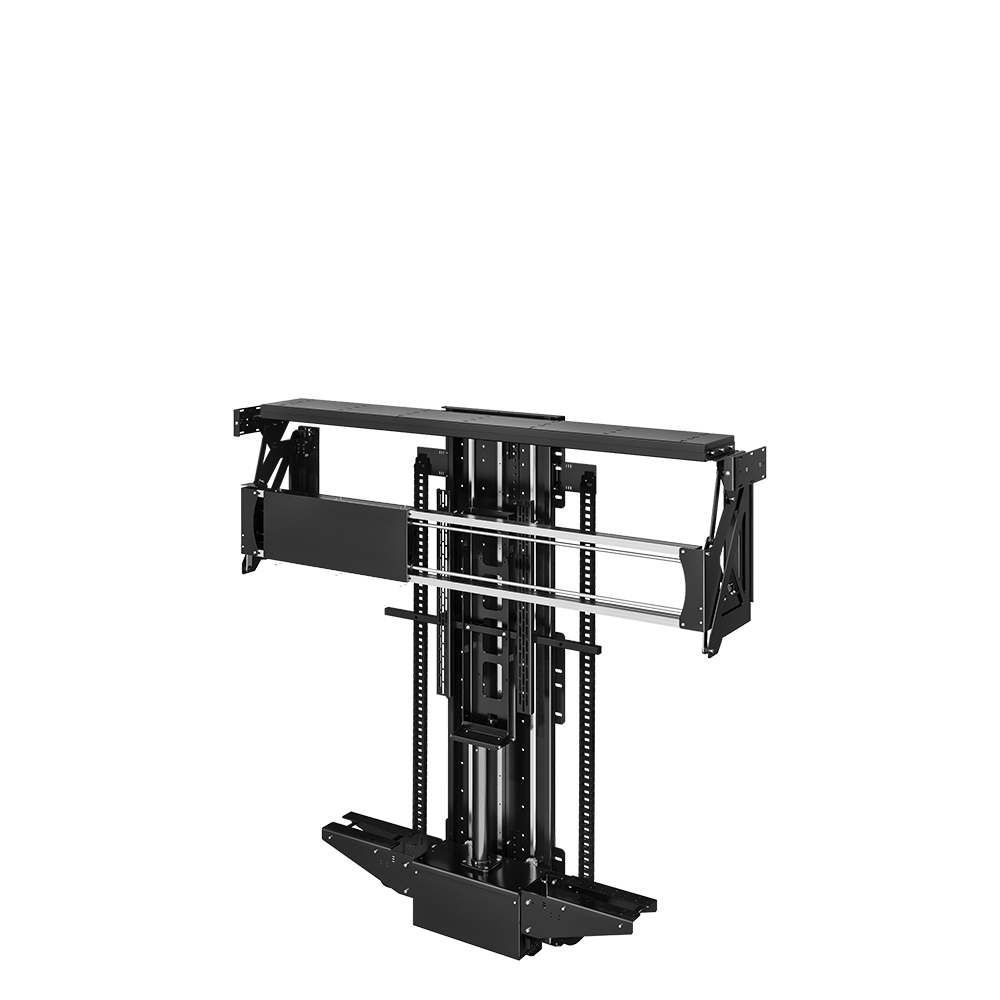

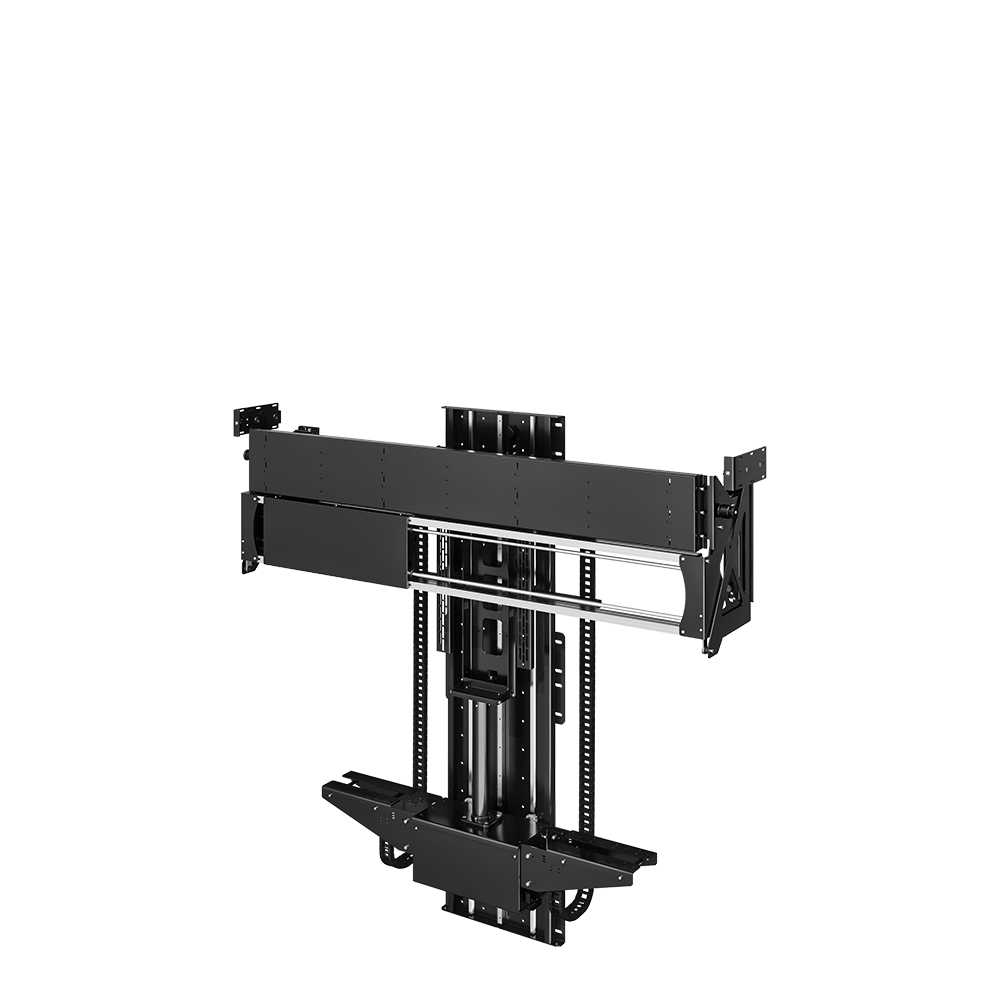

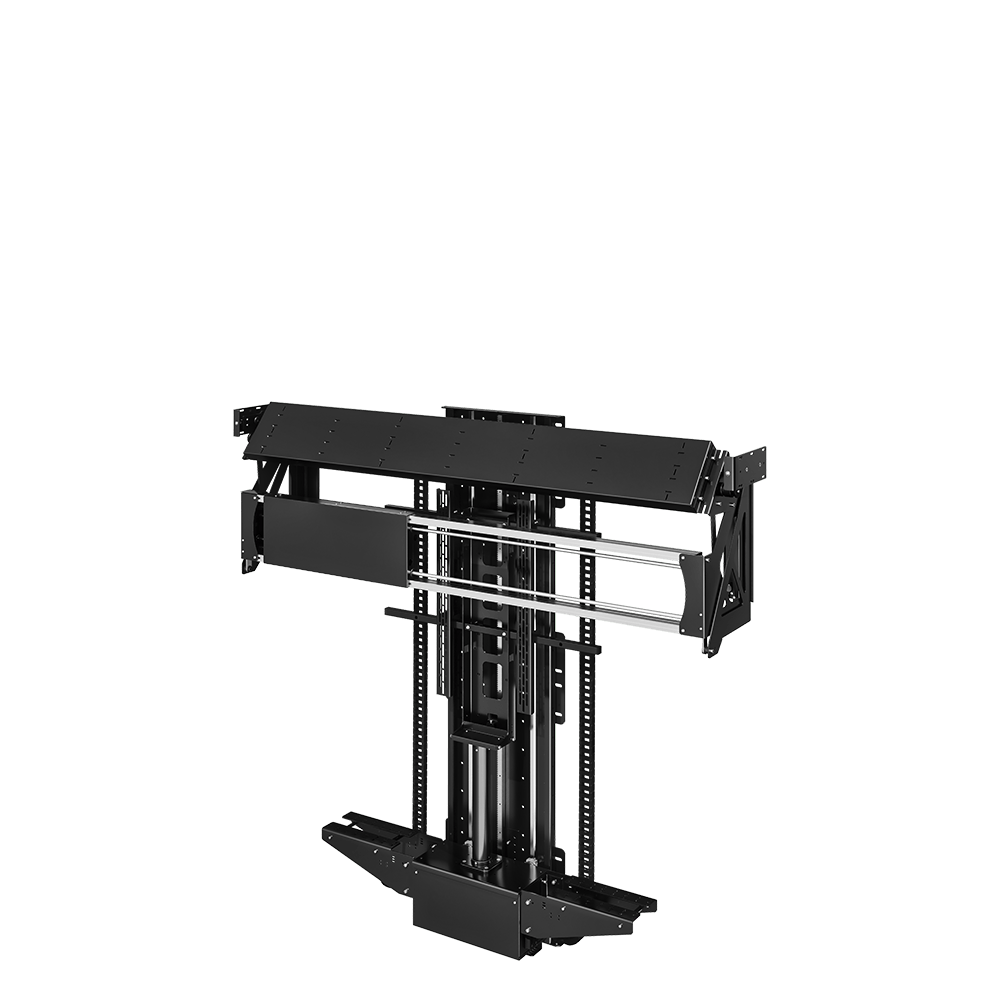

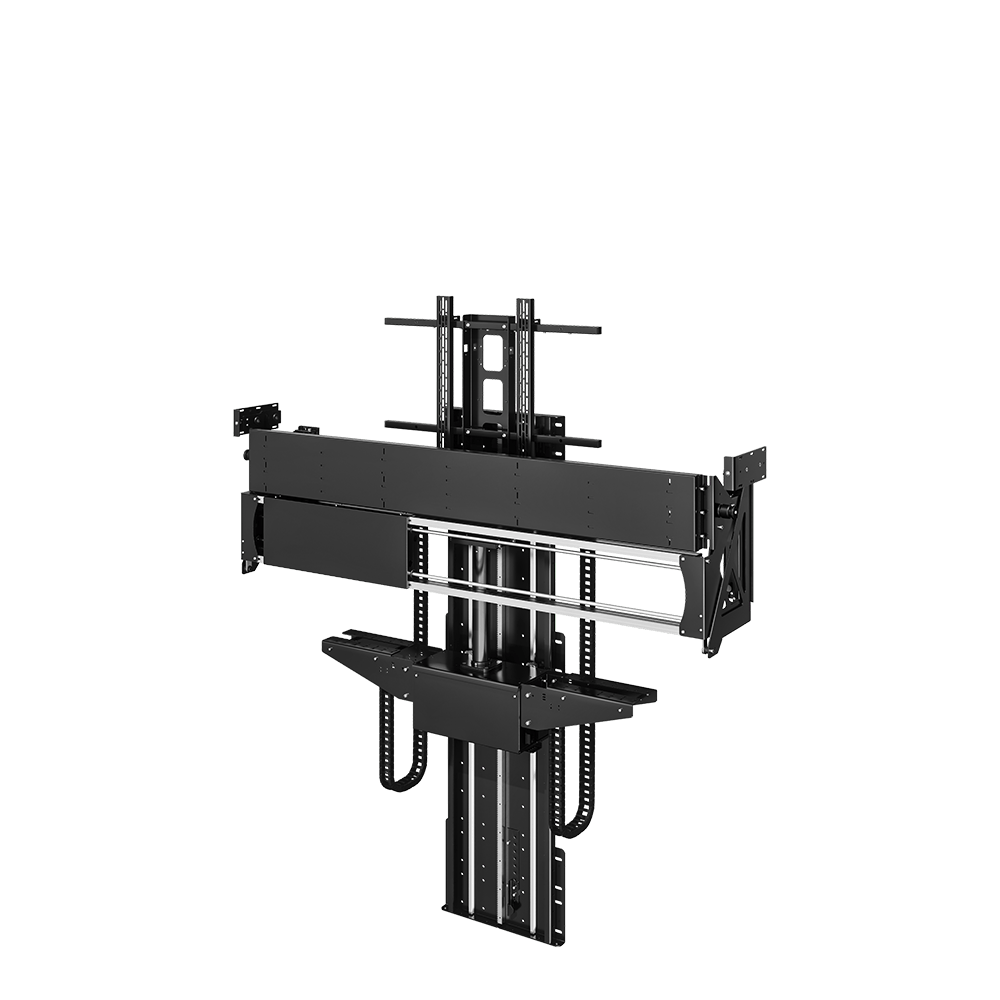

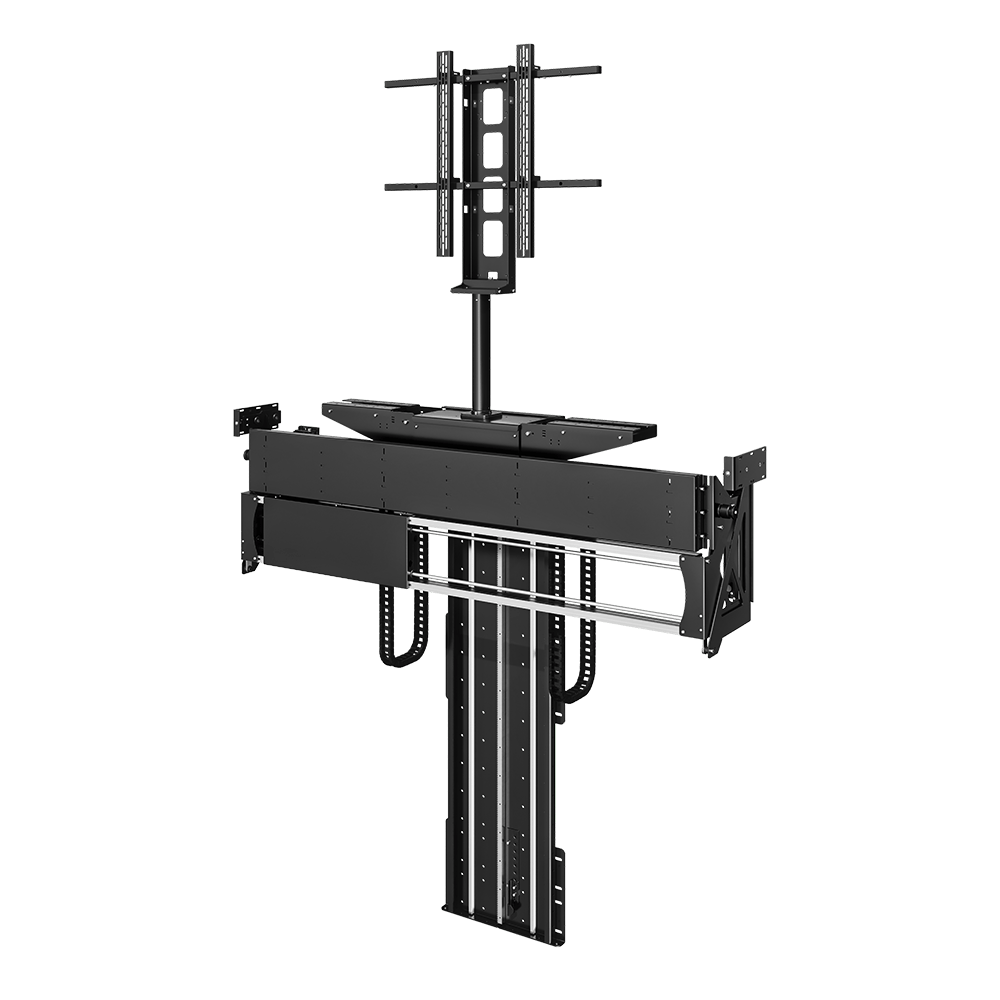

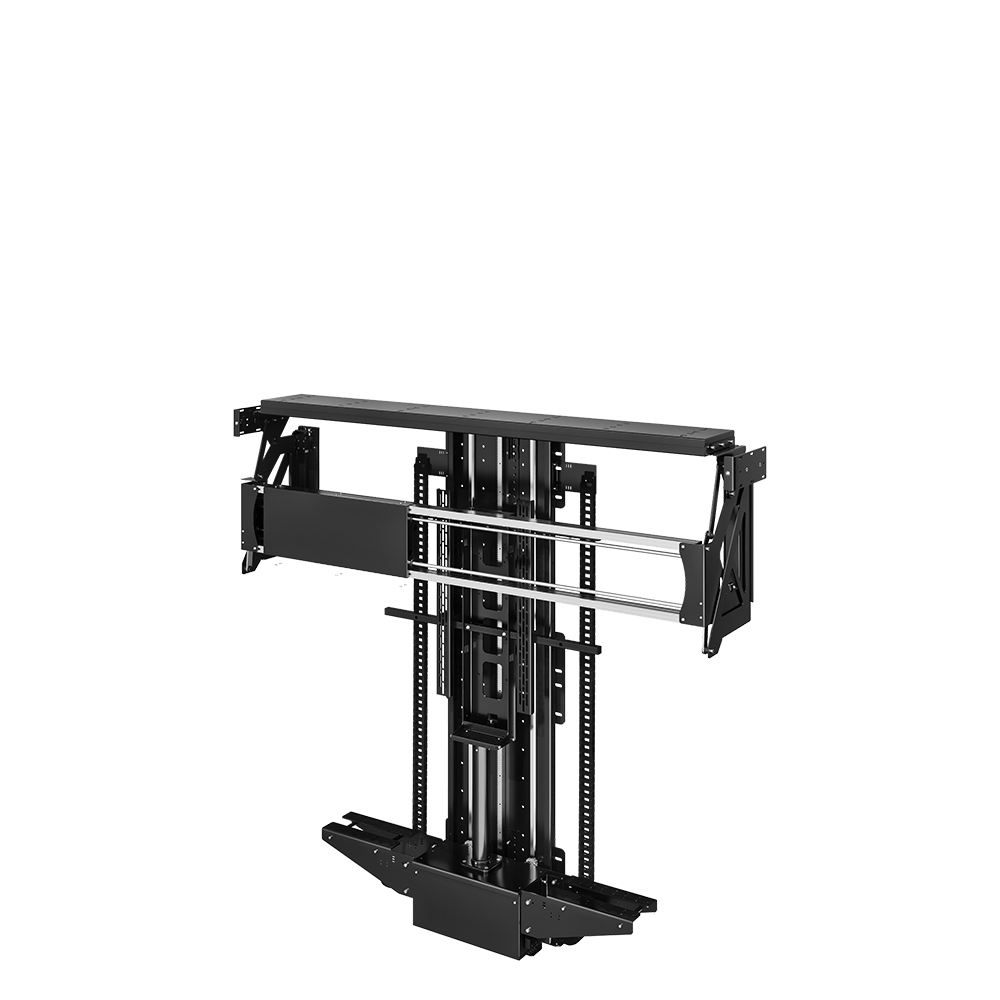

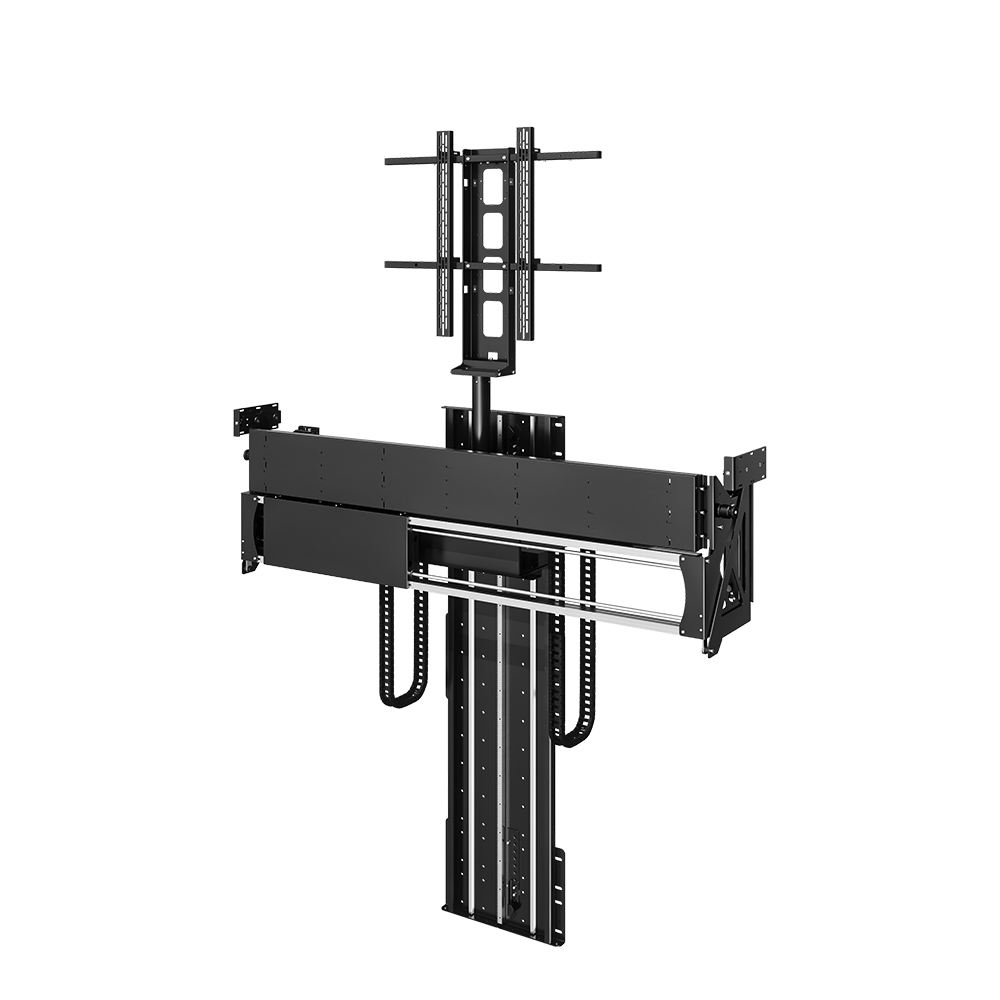

The PLF-S is a motorised in-floor TV lift with integrated swivel functionality, designed to discreetly conceal large displays beneath the floor while offering flexible viewing positions. The mechanism smoothly raises and rotates the display into position, creating an effortless transition between concealed and visible.
Engineered for seamless integration into residential and commercial interiors, the PLF-S combines precise vertical movement with motorised rotation of up to 180° in either direction. Its robust lifting system and considered design allow technology to remain completely out of sight when not in use, preserving the aesthetics of the surrounding space.
The PLF-S-DRL features an integrated Drop & Roll flap system, allowing the floor panel to move smoothly out of the way as the display rises into position. For installations requiring a fixed lid or box enclosure, explore the PLF-S, offering the same motorised lifting and swivel functionality with alternative floor integration options.
| PLF-S-DRL IS AVAILABLE IN 4 STANDARD SIZES | |||||
|---|---|---|---|---|---|
| APPROX SCREEN SIZE | MIN SCREEN HEIGHT | MAX SCREEN HEIGHT | MAX WEIGHT | PRODUCT | |
| 55" | 680MM [26 3/4"] |
800MM [31 1/2"] |
100KG [220LBS] |
PLF-S-5-DRL | |
| 65" | 800MM [31 1/2"] |
920MM [36 1/4"] |
100KG [220LBS] |
PLF-S-6-DRL | |
| 75" | 920MM [36 1/4"] |
1040MM [40 15/16"] |
100KG [220LBS] |
PLF-S-7-DRL | |
| 85" | 1040MM [40 15/16"] |
1160MM [45 11/16"] |
100KG [220LBS] |
PLF-S-8-DRL | |
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | PLF-S-5-DRL | PLF-S-6-DRL | PLF-S-7-DRL | PLF-S-8-DRL |
|---|---|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| CONTROL OPTIONS (OPTIONAL) | RF | RF | RF | RF |
| INTERNAL PIT HEIGHT | 1650MM [64 15/16"] | 1770MM [69 11/16"] | 1890MM [74 7/16"] | 2010MM [79 1/8"] |
| MAXIMUM LIFTING CAPACITY | 100KG [220LBS] | 100KG [220LBS] | 100KG [220LBS] | 100KG [220LBS] |
| MAXIMUM SCREEN HEIGHT | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] | 1160MM [45 11/16"] |
| MINIMUM SCREEN HEIGHT | 680MM [26 3/4"] | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| DOWNLOADS / SUPPORT | ||||
| TECHNICAL SHEET |
 PLF-S-5-DRL TECH
|
PLF-S-6-DRL TECH
|
PLF-S-7-DRL TECH
|
PLF-S-8-DRL TECH
|
| SAFETY DOCUMENTS |
PLF-S-DRL INTEGRATION CONSIDERATIONS
|
|||
| INSTRUCTIONS |
PLF-S-DRL INSTRUCTIONS
|
|||
| CAD |
 PLF-S-DRL-5 CAD
|
PLF-S-DRL-6 CAD
|
PLF-S-DRL-7 CAD
|
PLF-S-DRL-8 CAD
|
