PLF-DRL TECH SPECS
IN-FLOOR TV LIFT

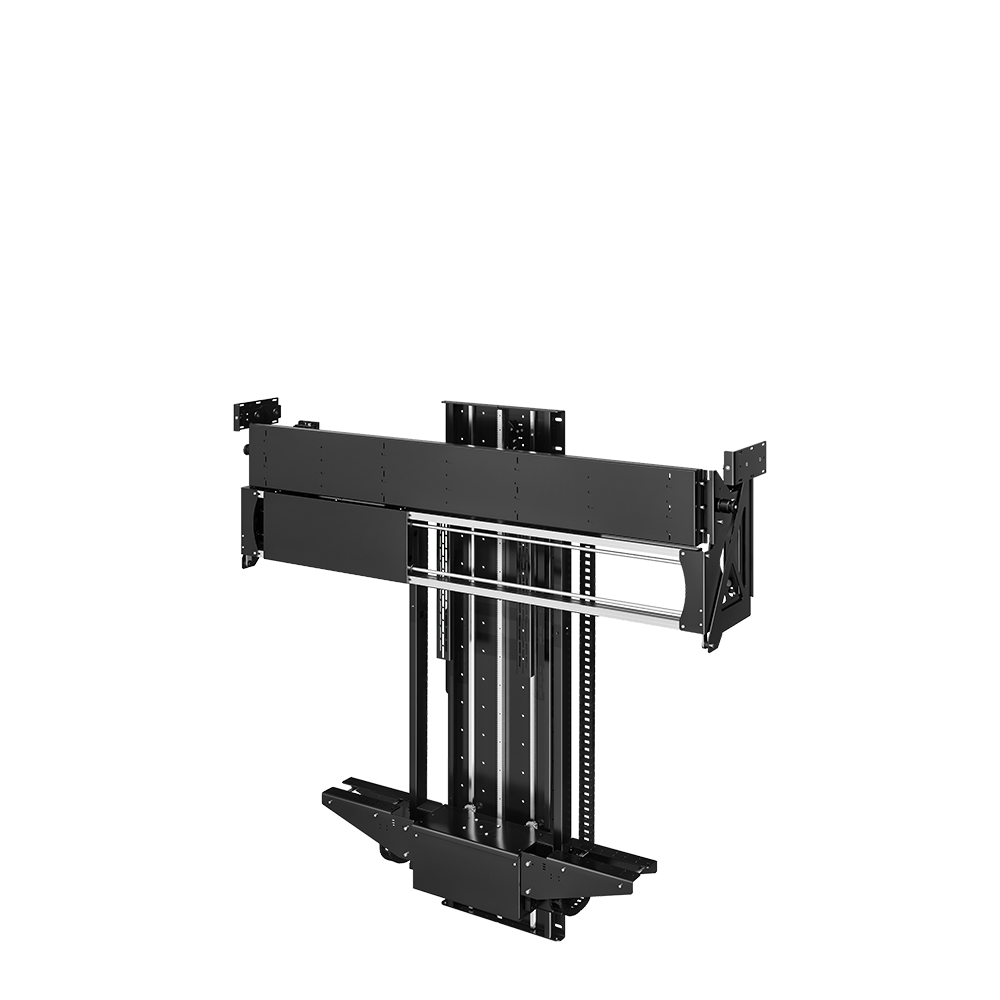

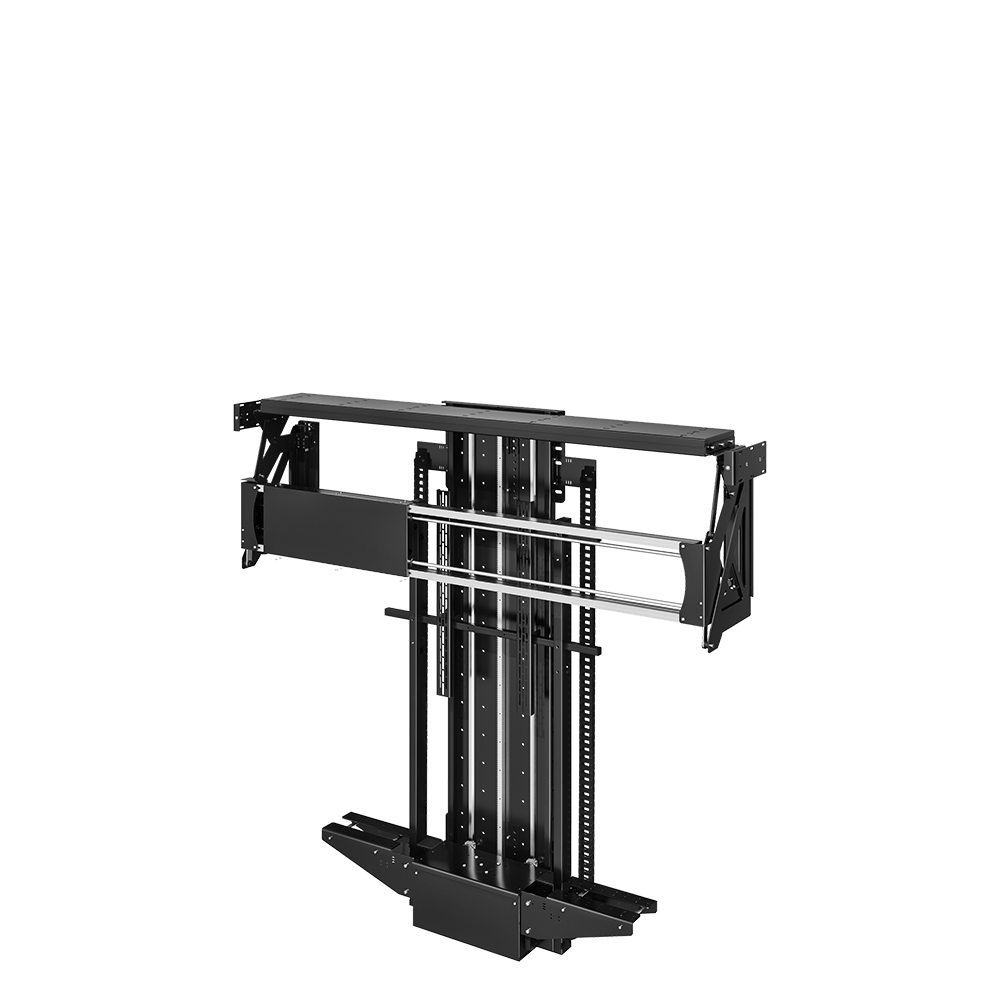

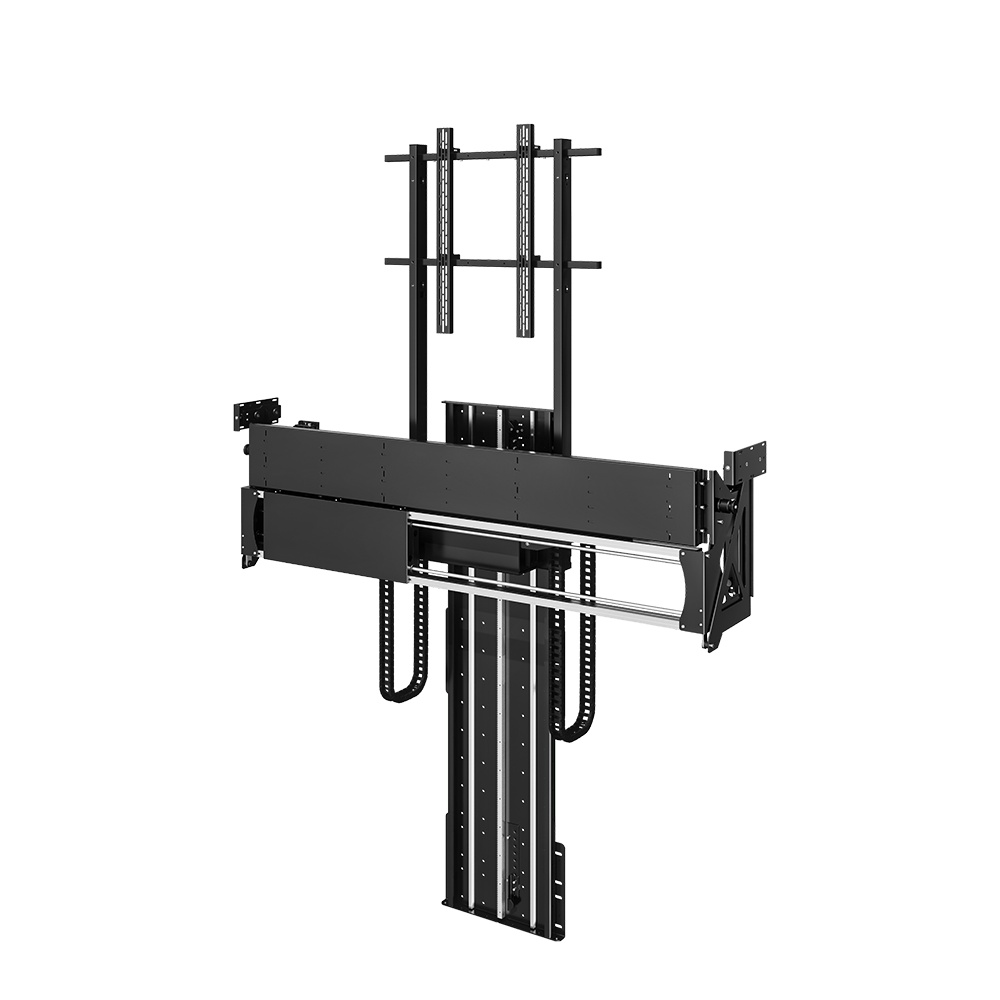

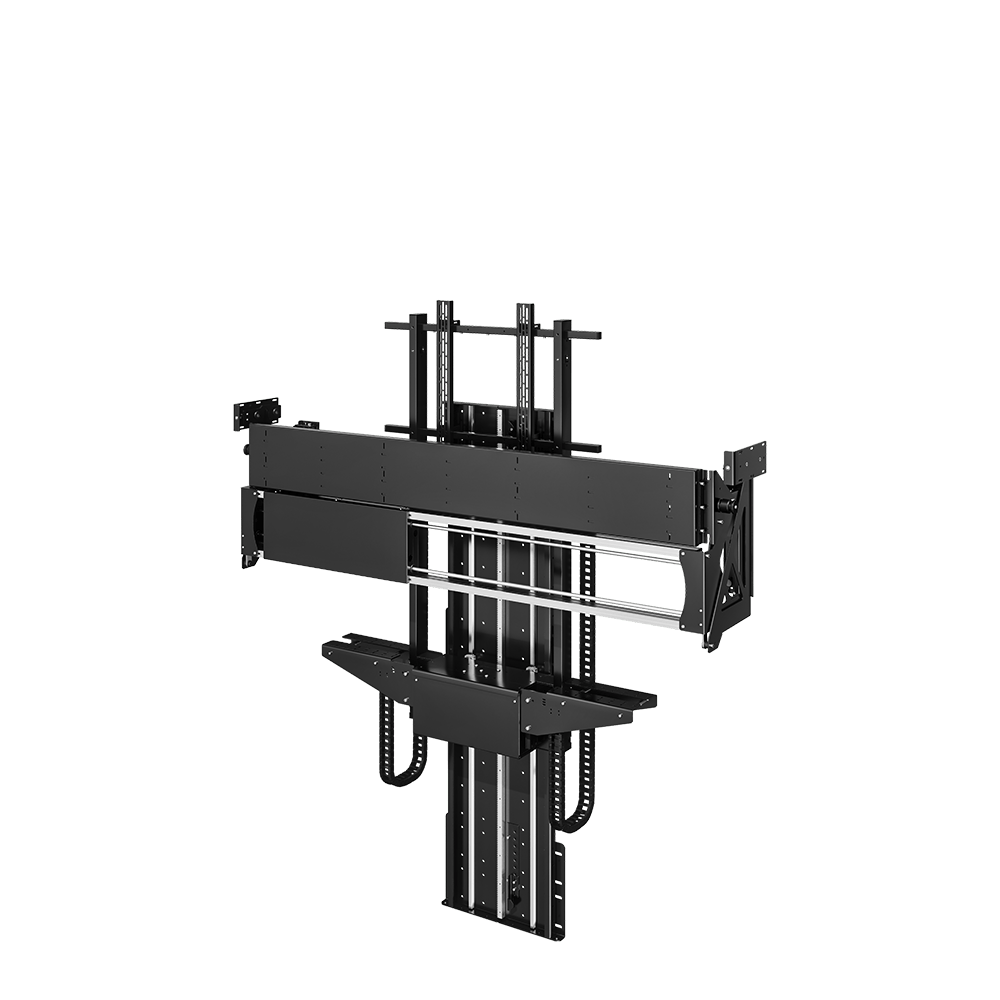

The PLF is a motorised in-floor TV lift designed to seamlessly conceal large displays beneath the floor, preserving the aesthetics of the surrounding space. At the touch of a button, the mechanism smoothly raises the display into its viewing position, creating an effortless transition between concealed and visible.
Engineered for demanding residential and commercial installations, the PLF combines precise vertical movement with a robust, high-capacity lifting system. Designed to integrate discreetly into the surrounding architecture, the mechanism allows technology to remain out of sight until required.

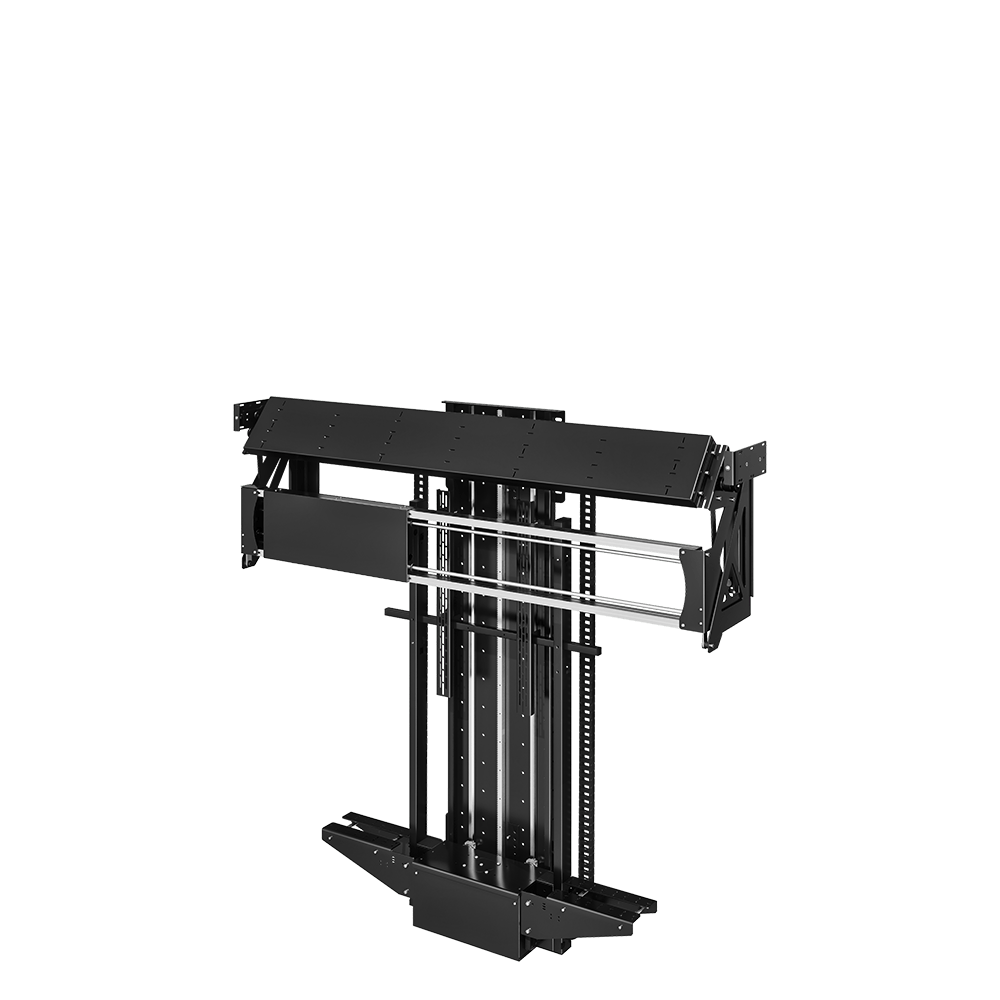

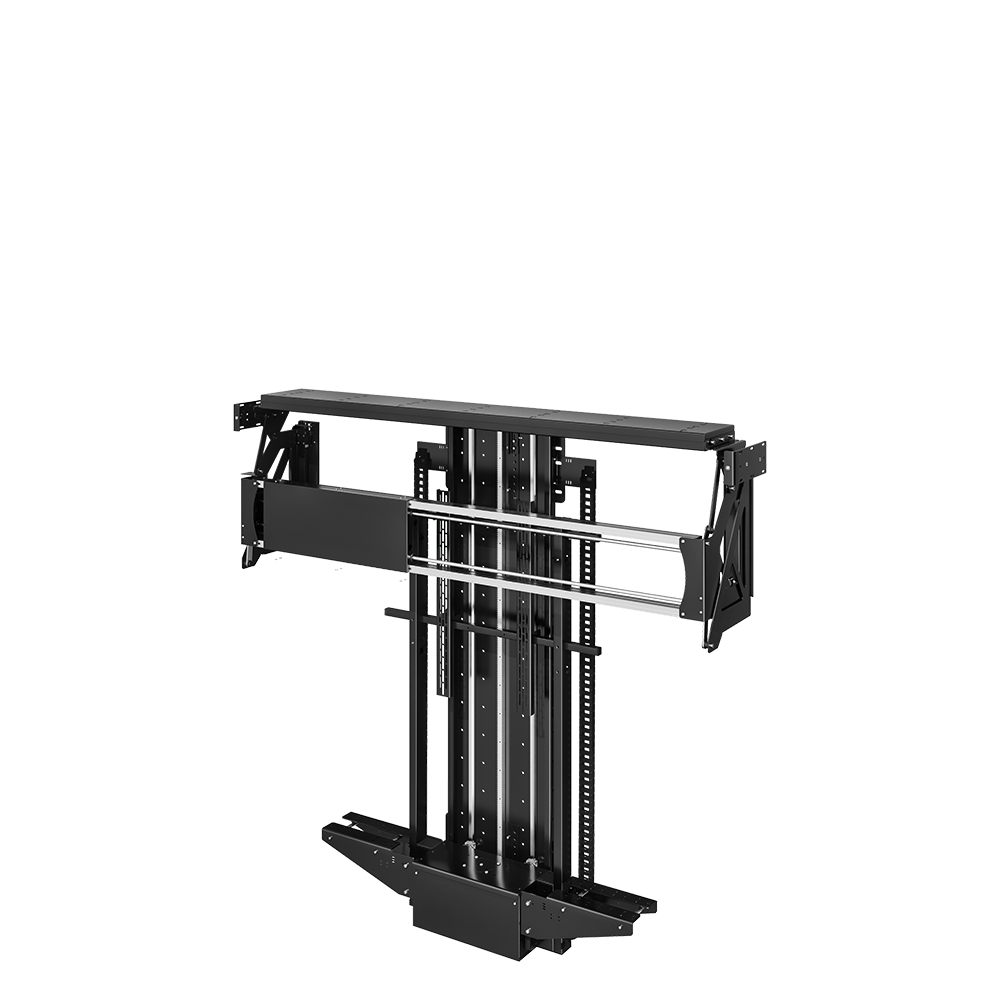

The PLF-DRL features an integrated Drop & Roll flap system, allowing the floor panel to move smoothly out of the way as the display rises into position. For installations requiring a fixed lid or box enclosure, explore the PLF, offering the same motorised lifting functionality with alternative floor integration options.
| PLF-DRL IS AVAILABLE IN 4 STANDARD SIZES | |||||
|---|---|---|---|---|---|
| APPROX SCREEN SIZE | MIN SCREEN HEIGHT | MAX SCREEN HEIGHT | MAX WEIGHT | PRODUCT | |
| 55" | 680MM [26 3/4"] |
800MM [31 1/2"] |
100KG [220LBS] |
PLF5 | |
| 65" | 800MM [31 1/2"] |
920MM [36 1/4"] |
100KG [220LBS] |
PLF6 | |
| 75" | 920MM [36 1/4"] |
1040MM [40 15/16"] |
100KG [220LBS] |
PLF7 | |
| 85" | 1040MM [40 15/16"] |
1160MM [45 11/16"] |
100KG [220LBS] |
PLF8 | |
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | PLF-5-DRL | PLF-6-DRL | PLF-7-DRL | PLF-8-DRL |
|---|---|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| CONTROL OPTIONS (OPTIONAL) | RF | RF | RF | RF |
| INTERNAL PIT HEIGHT | 1830MM [72 1/16"] | 1950MM [76 3/4"] | 2070MM [81 1/2"] | 2190MM [86 1/4"] |
| MAX SCREEN HEIGHT | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] | 1160MM [45 11/16""] |
| MAXIMUM DRL LIFTING CAPACITY | 25KG [55LBS] | 25KG [55LBS] | 25KG [55LBS] | 25KG [55LBS] |
| MAXIMUM LIFTING CAPACITY | 100KG [220LBS] | 100KG [220LBS] | 100KG [220LBS] | 100KG [220LBS] |
| MINIMUM SCREEN HEIGHT | 680MM [26 3/4"] | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| DOWNLOADS / SUPPORT | ||||
| TECHNICAL SHEET |
 PLF-5-DRL TECH
|
PLF-6-DRL TECH
|
PLF-7-DRL TECH
|
PLF-8-DRL TECH
|
| SAFETY DOCUMENTS |
PLF-DRL INTEGRATION CONSIDERATIONS
|
|||
| INSTRUCTIONS |
PLF-DRL INSTRUCTIONS
|
|||
| CAD |
 PLF-DRL-5 CAD
|
PLF-DRL-6 CAD
|
PLF-DRL-7 CAD
|
PLF-DRL-8 CAD
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | PLF-5-DRL | RS232 / CONTACT CLOSURE / IR |
| PLF-6-DRL | RS232 / CONTACT CLOSURE / IR | |
| PLF-7-DRL | RS232 / CONTACT CLOSURE / IR | |
| PLF-8-DRL | RS232 / CONTACT CLOSURE / IR | |
| CONTROL OPTIONS (OPTIONAL) | PLF-5-DRL | RF |
| PLF-6-DRL | RF | |
| PLF-7-DRL | RF | |
| PLF-8-DRL | RF | |
| INTERNAL PIT HEIGHT | PLF-5-DRL | 1830MM [72 1/16"] |
| PLF-6-DRL | 1950MM [76 3/4"] | |
| PLF-7-DRL | 2070MM [81 1/2"] | |
| PLF-8-DRL | 2190MM [86 1/4"] | |
| MAX SCREEN HEIGHT | PLF-5-DRL | 800MM [31 1/2"] |
| PLF-6-DRL | 920MM [36 1/4"] | |
| PLF-7-DRL | 1040MM [40 15/16"] | |
| PLF-8-DRL | 1160MM [45 11/16""] | |
| MAXIMUM DRL LIFTING CAPACITY | PLF-5-DRL | 25KG [55LBS] |
| PLF-6-DRL | 25KG [55LBS] | |
| PLF-7-DRL | 25KG [55LBS] | |
| PLF-8-DRL | 25KG [55LBS] | |
| MAXIMUM LIFTING CAPACITY | PLF-5-DRL | 100KG [220LBS] |
| PLF-6-DRL | 100KG [220LBS] | |
| PLF-7-DRL | 100KG [220LBS] | |
| PLF-8-DRL | 100KG [220LBS] | |
| MINIMUM SCREEN HEIGHT | PLF-5-DRL | 680MM [26 3/4"] |
| PLF-6-DRL | 800MM [31 1/2"] | |
| PLF-7-DRL | 920MM [36 1/4"] | |
| PLF-8-DRL | 1040MM [40 15/16"] | |
| MOVEMENT TYPE | PLF-5-DRL | MOTORISED |
| PLF-6-DRL | MOTORISED | |
| PLF-7-DRL | MOTORISED | |
| PLF-8-DRL | MOTORISED | |
