DDS TECH SPECS
MOTORISED DROP DOWN PROJECTOR SCREEN
The DDS is a motorised drop down projector screen engineered to transform any room into a home theatre on demand. The screen installs seamlessly within our Unichannel system using the supplied twist-in brackets, providing a discreet solution that maintains your interior design whilst delivering cinema-quality performance.
Available in three sizes (110", 130", 140") with three fabric finishes to choose from (High Contrast Grey, Perlux White, and Matt Plus). Each finish has been selected to work optimally with different ambient lighting conditions and projector specifications. Screen materials are unperforated as standard, with the bespoke option to specify perforated variants to optimise acoustic performance when speakers are positioned behind the screen.
- Three standard sizes available, with custom available on request
- Fabric colours: High Contrast Grey, Perlux White, and Matt Plus
- Variable drop length settings

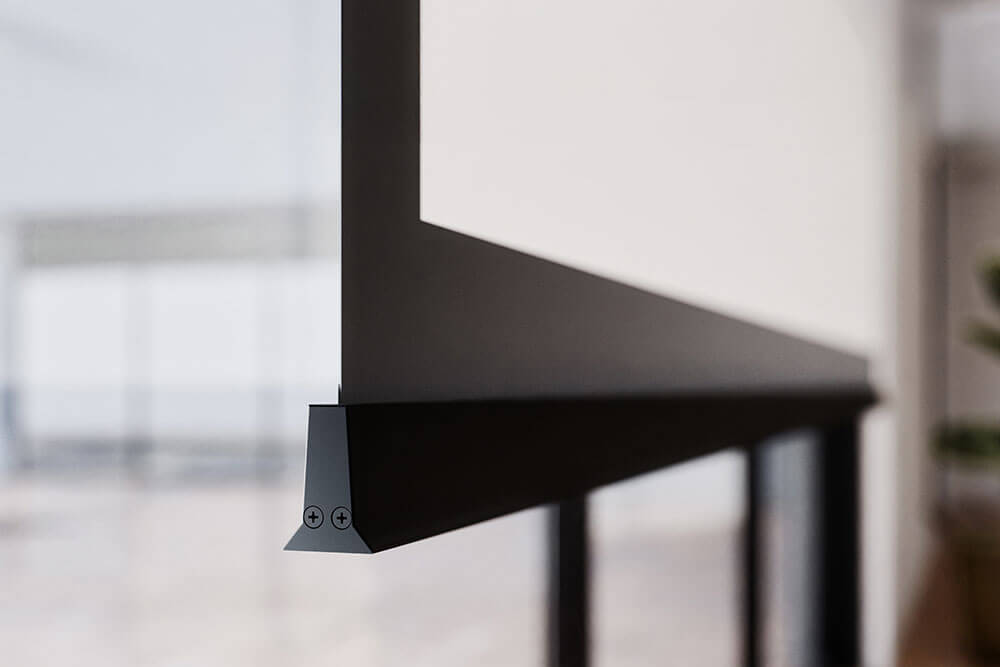

ENGINEERED HEMBAR
The DDS features an innovative wedge-shaped hembar, designed to slot perfectly into a corresponding V-shaped gap in the finished ceiling, ensuring a sleek finish when the screen is retracted. If specified with a headbox, it retracts seamlessly within, creating a streamlined and unobtrusive appearance.
This unique hembar gives the ability to add tension to the outer edges of the fabric, removing curling down the sides of the screen without the need for a tab tension system.

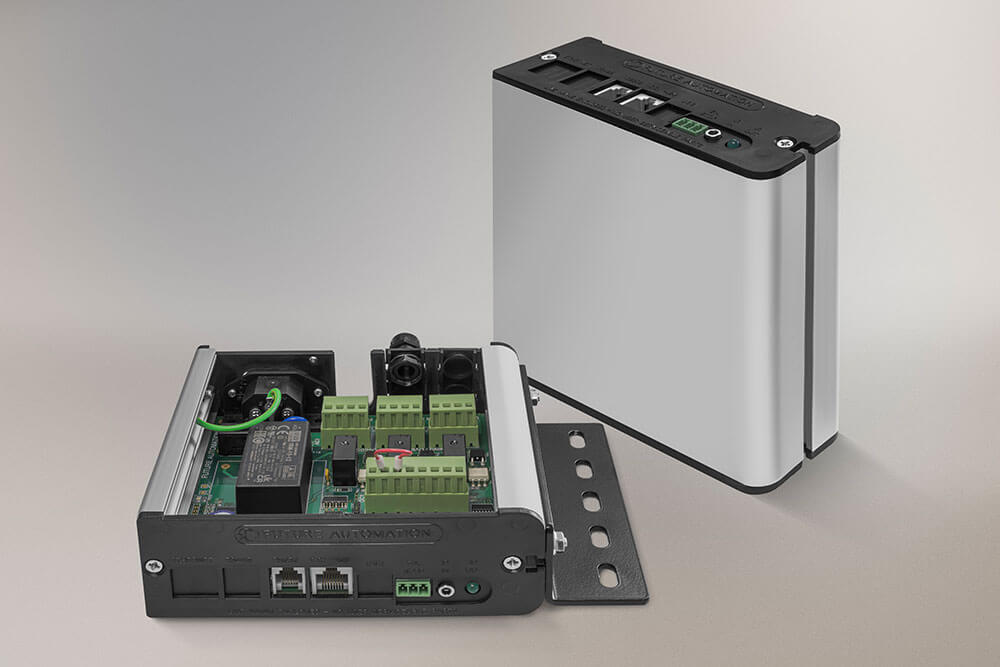

COMPLETE CONTROL
As standard the DDS features a control board that supports IR control (remote included), RS232, and Contact Closure. Ideal for a range of installations from simplified setups to a full home control system, it ensures seamless operation and precise control.
DDS-CB TECH

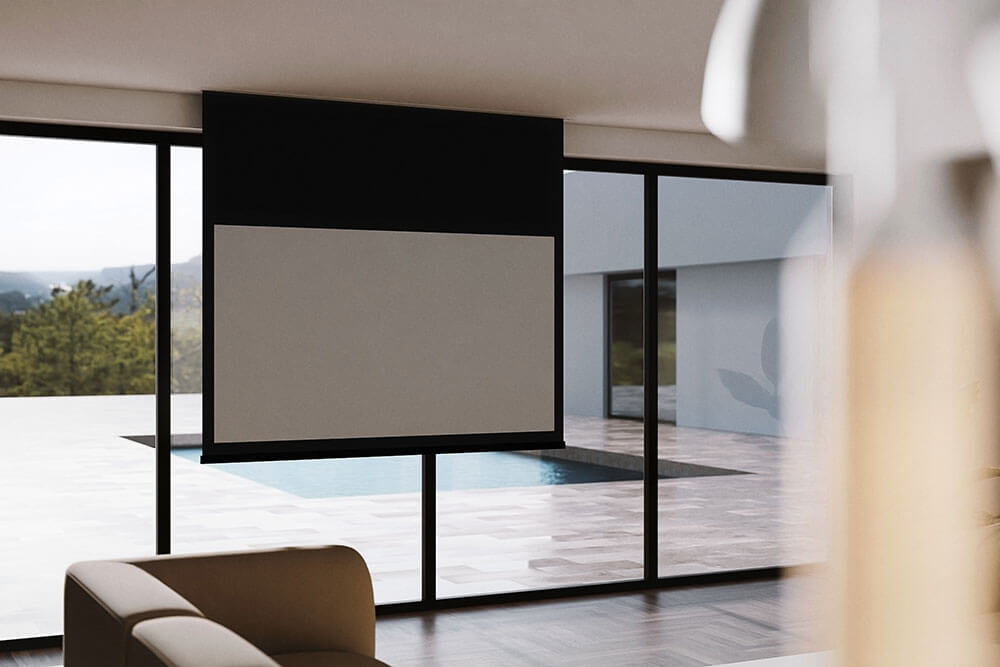

UNICHANNEL INTEGRATION
When specified without a headbox, the DDS is designed for seamless integration with UniChannel (UCH) modular in-ceiling shade pocket system.
When integrated into a UniChannel installation, the entire screen mechanism is concealed within the ceiling void, with the screen lowering out of a shadow gap.
The innovative mounting profile in UniChannel means that the DDS can be simply inserted and locked into place inside the pocket (before being secured via mechanical fixings).

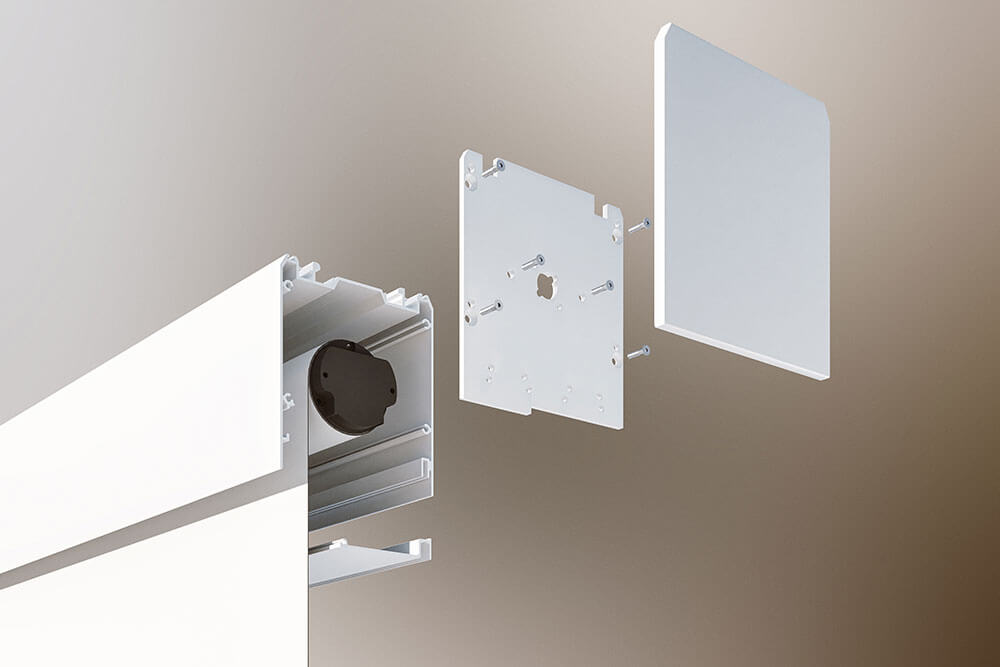

SLEEK HEAD BOX
The optional headbox features a sleek, angular design crafted from high-quality aluminium, powder coated white as standard. The removable lower cover flap discreetly conceals the bottom of the screen for a clean, professional look when retracted.
Designed for simple installation, the headbox utilizes top-fix spring clips for secure mounting, allowing the entire assembly to be easily attached. The headbox can be custom RAL painted to match any desired finish, ensuring seamless integration with any interior.
CONFIGURE SCREEN
SCREEN SIZE
FABRIC
VOLTAGE
HEADBOX
PRODUCT CODE
110"
NOT TO SCALE
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | DDS-110 | DDS-130 | DDS-140 |
|---|---|---|---|
| DIAGONAL SIZE | 2794MM [110"] | 3302MM [130"] | 3556MM [140"] |
| INSTALLATION WIDTH |
DDS - 2622MM [103 1/4"] DDS-HB - 2626MM [103 3/8"] |
DDS - 3065MM [120 11/16"] DDS-HB - 3069MM [120 13/16"] |
DDS - 3287MM [129 7/16"] DDS-HB - 3291MM [129 9/16"] |
| MASKING HEIGHT | 1370 [53 15/16"] | 1619 [63 3/4"] | 1743 [68 5/8"] |
| MASKING WIDTH | 2435.1 [95 7/8"] | 2877.9 [113 5/16"] | 3099.5 [122"] |
| MATERIAL WIDTH | 2585MM [101 3/4"] | 3028MM [119 3/16"] | 3250MM [127 15/16"] |
| MAX DROP | 2800MM [110 1/4"] | 2800MM [110 1/4"] | 2800MM [110 1/4"] |
| DOWNLOADS / SUPPORT | |||
| TECHNICAL SHEET |
 DDS TECH
DDS-HB TECH
|
||
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| DIAGONAL SIZE | DDS-110 | 2794MM [110"] |
| DDS-130 | 3302MM [130"] | |
| DDS-140 | 3556MM [140"] | |
| INSTALLATION WIDTH | DDS-110 |
DDS - 2622MM [103 1/4"] DDS-HB - 2626MM [103 3/8"] |
| DDS-130 |
DDS - 3065MM [120 11/16"] DDS-HB - 3069MM [120 13/16"] |
|
| DDS-140 |
DDS - 3287MM [129 7/16"] DDS-HB - 3291MM [129 9/16"] |
|
| MASKING HEIGHT | DDS-110 | 1370 [53 15/16"] |
| DDS-130 | 1619 [63 3/4"] | |
| DDS-140 | 1743 [68 5/8"] | |
| MASKING WIDTH | DDS-110 | 2435.1 [95 7/8"] |
| DDS-130 | 2877.9 [113 5/16"] | |
| DDS-140 | 3099.5 [122"] | |
| MATERIAL WIDTH | DDS-110 | 2585MM [101 3/4"] |
| DDS-130 | 3028MM [119 3/16"] | |
| DDS-140 | 3250MM [127 15/16"] | |
| MAX DROP | DDS-110 | 2800MM [110 1/4"] |
| DDS-130 | 2800MM [110 1/4"] | |
| DDS-140 | 2800MM [110 1/4"] | |
