UBLS TECH SPECS

TV UNDER BED LIFT & SWIVEL

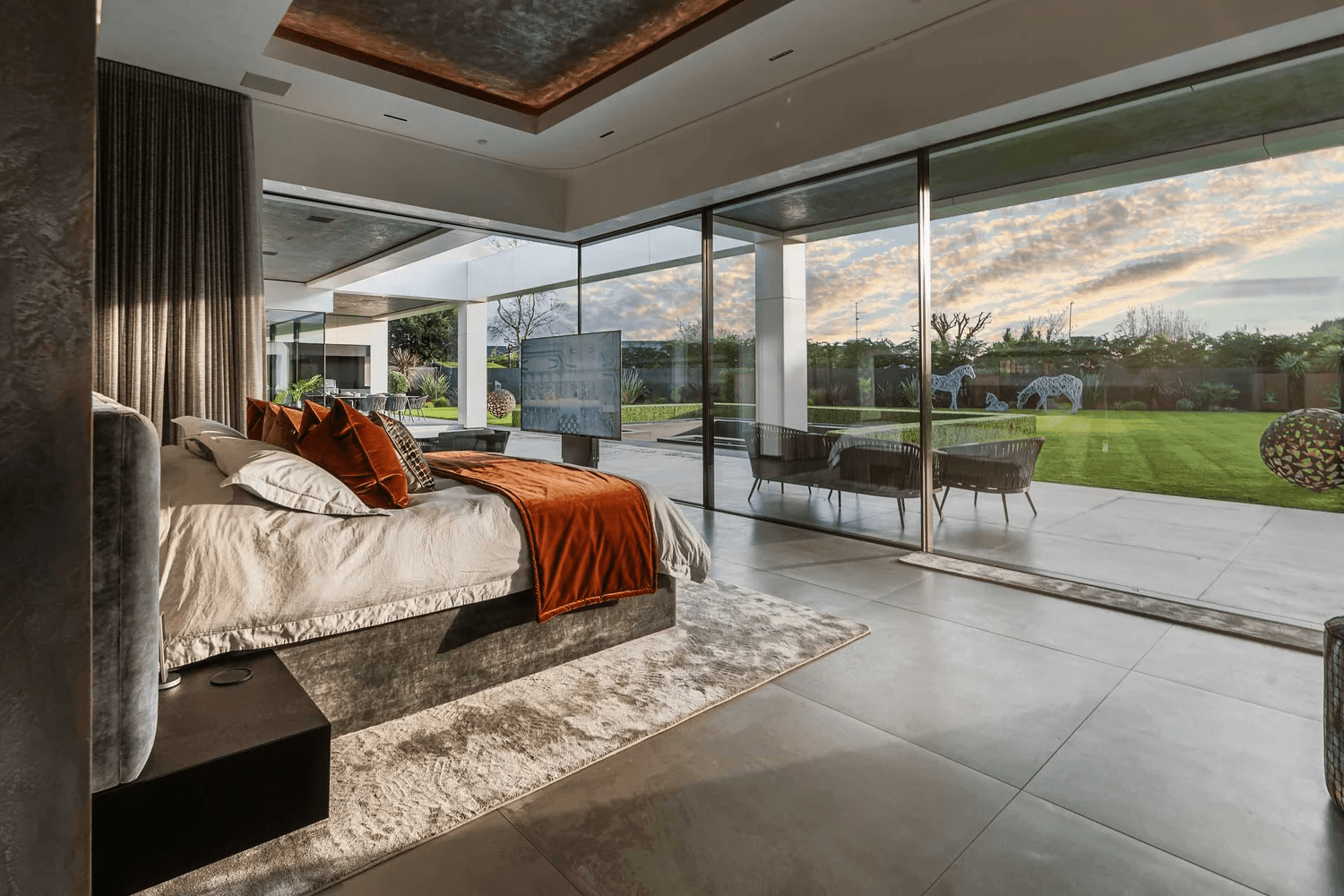

The Under Bed TV Lift & Swivel is a unique and impressive mechanism that stores a flat screen under a bed then swivels when in the up position to allow multiple viewing angles, negating the need for cabinetry at the foot of the bed.

Compact and sleek in design, the Under Bed TV Lift offers an alternative to traditional flat screen TV lifts and with its pop up design, helps create a different dimension to the interior design of a room.

The Under Bed Lift is available in the UBLS-EBF form with a motorised flap which opens before the screen is revealed and closes after it is concealed.

  • Smooth and efficient movement, combined with a near silent motor, make this lift ideal for residential installation
  • In built cable management chain ensures cables are securely stowed for safe mechanism operation and a neat finish
  • Supplied as a fully built unit the UBLS ships ready to be integrated with no self-assembly required
  • When closed the screen and mechanism are completely hidden under the bed, removing the need for furniture or a visible screen when not in use
HOW TO PURCHASE DEALER LOGIN

HAND CRAFTED IN HOUSE

-
- -

TECHNICAL SPECIFICATION

PRODUCT CODE UBLS UBLS-EBF
CONTROL OPTIONS RS232 / IR (RF AVAILABLE) RS232 / IR (RF AVAILABLE)
DECIBEL RATING 50DB 50DB
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005
FLAP TYPE NONE MOTORISED FLAP UNIT
MAX SCREEN SIZE (H X W X D) 800 X 1250 X 70MM (31.49 X 49.21 X 2.75") 800 X 1250 X 70MM (31.49 X 49.21 X 2.75")
MAX WEIGHT 40KG (88LBS) 40KG (88LBS)
MIN HEIGHT REQUIRED 255MM (10.03") 320MM (12.59")
MIN LENGTH REQUIRED 1800MM (70.86") 1800MM (70.86")
MOVEMENT TYPE MOTORISED MOTORISED
POWER CONSUMPTION MAX 100W MAX 100W
POWER CONSUMPTION (STANDBY) 1.5W 1.5W
SHIPPING INFORMATION
SHIPPING DIMENSIONS 166x81x51cm (65.35 x 31.88 x 20.07") 166x81x51cm (65.35 x 31.88 x 20.07")
SHIPPING WEIGHT 129kg (284lbs) 150kg (331lbs)
DOWNLOADS / SUPPORT
TECHNICAL SHEET PDF DocumentUBLS TECH
PDF DocumentUBL-RWF TECH
PDF DocumentUBLS-EBF TECH
PDF DocumentUBL-RWF TECH
INSTRUCTIONS PDF DocumentUBLS INSTRUCTIONS PDF DocumentEBF INSTRUCTIONS PDF DocumentUBLS APPLICATION NOTES
CAD CAD FileUBLS CAD
CAD FileUBLS-EBF CAD
TECHNICAL SPECIFICATION
Control Options UBLS RS232 / IR (RF Available)
UBLS-EBF RS232 / IR (RF Available)
Decibel Rating UBLS 50dB
UBLS-EBF 50dB
Finish (Custom Available) UBLS Black Paint - RAL 9005
UBLS-EBF Black Paint - RAL 9005
Flap Type UBLS None
UBLS-EBF Motorised Flap Unit
Max Screen Size (H x W x D) UBLS 800 x 1250 x 70mm (31.49 x 49.21 x 2.75")
UBLS-EBF 800 x 1250 x 70mm (31.49 x 49.21 x 2.75")
Max Weight UBLS 40kg (88lbs)
UBLS-EBF 40kg (88lbs)
Min Height Required UBLS 255mm (10.03")
UBLS-EBF 320mm (12.59")
Min Length Required UBLS 1800mm (70.86")
UBLS-EBF 1800mm (70.86")
Movement Type UBLS Motorised
UBLS-EBF Motorised
Power Consumption UBLS Max 100W
UBLS-EBF Max 100W
Power Consumption (Standby) UBLS 1.5W
UBLS-EBF 1.5W
SHIPPING DIMENSIONS
SHIPPING DIMENSIONS UBLS 166x81x51cm (65.35 x 31.88 x 20.07")
UBLS-EBF 166x81x51cm (65.35 x 31.88 x 20.07")
Shipping Weight UBLS 129kg (284lbs)
UBLS-EBF 150kg (331lbs)
Downloads / Support
TECHNICAL SHEET PDF DocumentUBLS-EBF Tech PDF DocumentUBLS Tech PDF DocumentUBL-RWF Tech PDF DocumentUBL-RWF Tech
INSTRUCTIONS PDF DocumentUBLS Instructions PDF DocumentEBF Instructions PDF DocumentUBLS Application Notes
CAD CAD FileUBLS CAD CAD FileUBLS-EBF CAD
