UB-VCP TECH SPECS
UNIVERSAL WALL BOX VENTED COVER PANEL
The UB-VCP is designed to accompany the Future Automation UB In Wall Box.

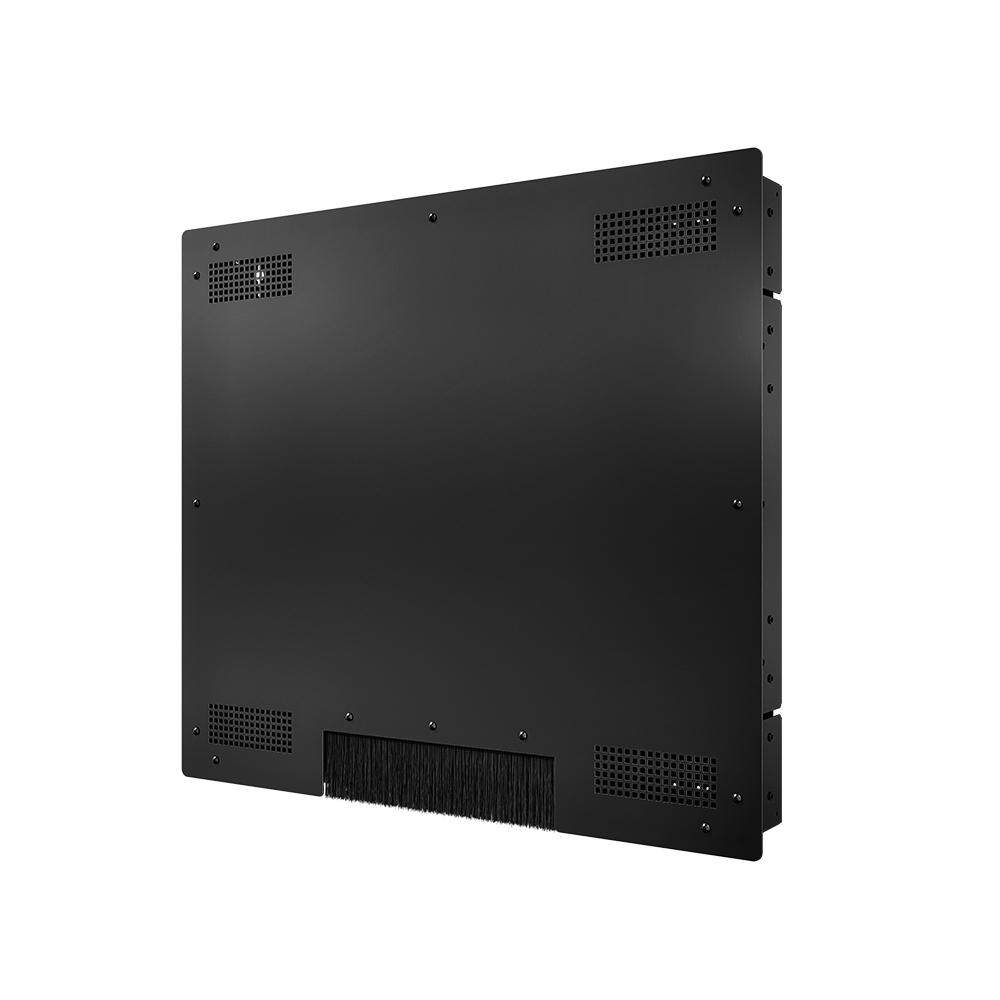

The vented wall box cover attaches to the wall box, once it has been installed, to protect the internal components that have been installed. Featuring holes for ventilation, as well as a brush seal cable entry point at the bottom of the cover, the UB-VCP is ideal when housing accessories in a WB.
The UB-VCP is available in 3 sizes to suit the each UB wall box model.
A blank cover panel option (UB-BCP) is also available LEARN MORE
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | UB22-VCP | UB27-VCP | UB32-VCP |
|---|---|---|---|
| COMPATIBLE PRODUCTS | UB22 | UB27 | UB32 |
| FINISH | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE |
| MARINE SUITABLE | NO | NO | NO |
| OUTDOOR SUITABLE | NO | NO | NO |
| PRODUCT DIMENSIONS | 580 X 790 X 1.5MM (22 13/16 X 31 1/8 X 1/16") | 700 X 790 X 1.5MM (27 9/16 X 31 1/8 X 1/16") | 820 X 790 X 1.5MM (32 5/16 X 31 1/8 X 1/16") |
| DOWNLOADS / SUPPORT | |||
| TECHNICAL SHEET |
 UB22-VCP TECH
|
UB27-VCP TECH
|
UB32-VCP TECH
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| COMPATIBLE PRODUCTS | UB22-VCP | UB22 |
| UB27-VCP | UB27 | |
| UB32-VCP | UB32 | |
| FINISH | UB22-VCP | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE |
| UB27-VCP | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | |
| UB32-VCP | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE | |
| MARINE SUITABLE | UB22-VCP | NO |
| UB27-VCP | NO | |
| UB32-VCP | NO | |
| OUTDOOR SUITABLE | UB22-VCP | NO |
| UB27-VCP | NO | |
| UB32-VCP | NO | |
| PRODUCT DIMENSIONS | UB22-VCP | 580 X 790 X 1.5MM (22 13/16 X 31 1/8 X 1/16") |
| UB27-VCP | 700 X 790 X 1.5MM (27 9/16 X 31 1/8 X 1/16") | |
| UB32-VCP | 820 X 790 X 1.5MM (32 5/16 X 31 1/8 X 1/16") | |
| DOWNLOADS / SUPPORT | ||
| TECHNICAL SHEET |
UB22-VCP Tech
UB27-VCP Tech
UB32-VCP Tech
|
|
