LUMA-SCOPE TECH SPECS
FIXED FRAME PROJECTOR SCREEN
LUMA SCOPE is a range of fixed frame projector screens, engineered with acoustically transparent materials, available in customizable designs to deliver breathtaking projections and pristine audio fidelity.
The Luma Scope series offers two border options (select to swap):
- Industry Leading Projection Surface: Designed with modern laser projection systems in mind, fully compatible with HDR and Dolby Vision.
- Acoustically Transparent Screen Material: Dual-layer woven fabric (white front for vivid imagery, optional black back for superior contrast supplied as standard) allows speakers to be discreetly placed behind the screen.
- Ambient LED Lighting Integration: Integrated LED diffuser channels around the perimeter accommodate LED tape (supplied separately) for refined backlighting.
- Premium Aluminium Construction: Lightweight, rigid frames finished in RAL 9005 Black (satin) as standard, with bespoke RAL color options available to complement any interior.
- Effortless Assembly and Installation: Delivered flat-packed, the frames assemble swiftly with minimal tools. Innovative wall-mount brackets (hook-on upper, magnetic lower, and side guides) ensure secure, off-floor fabric stretching, protecting against dirt and damage during setup.
- Fabric Gripping System: Ensures taut, wrinkle-free screen tension for flawless, Ultra High-Definition image reproduction.
- Magnetic Trims (Slim Model): Hand-wrapped in luxurious black velvet for optimal light absorption, magnetically mounted for seamless installation, maintenance, and a polished aesthetic.
LUMA CLEAR AT
Acoustically Transparent Projection Surface
Luma Clear AT (Acoustically Transparent) is our leading stretched frame projection surface material. Its unique woven structure with special coating delivers industry-leading sound transmission while maintaining full visual performance.
The Moiré-free & speckle-free surface makes it perfectly suited for the projection requirements of modern home theatres, no matter the size. Thanks to its special coating, Luma Clear AT delivers 0.7 gain with no impact on image quality at 4K and 8K resolution.
Luma Clear AT is designed to work perfectly with Future Automation’s Luma Scope Zero and Luma Scope Slim stretched frame projection screens, enabling installers’ freedom to locate speakers anywhere behind the screen with predictable, repeatable and minimal acoustic loss, while also helping to reduce required projector brightness.
LUMA NOIR AT
Optional contrast-enhancing black back layer
The fabric maintains excellent transparency with only a modest additional loss (still well below industry thresholds for noticeable degradation).
Subwoofers and full-range speakers placed behind the screen perform at full strength with no measurable impact below 200 Hz and negligible audible change across the entire spectrum.
The black backing material helps to reduce light reflection from features behind the screen and boost image contrast.
Our LUMA CLEAR AT fabric (with or without LUMA NOIR AT backing) meets or exceeds the transparency performance of the world’s leading reference screens, allowing speakers to be mounted directly behind the screen with minimal need for acoustic compensation.
Together, they preserve image quality, dialogue clarity, and dynamic range, helping to deliver the performance that both the projector and speakers were designed for.
MATERIAL SPECIFICATIONS
Material Type
Front Projection
Material Structure
Woven Core with Special Coating
Image Gain
0.7
Image Resolution
4K / 8K
Flame Resistant
Yes
Minimum Throw Distance
UST
Acoustic Transparency
Luma Clear AT: 1.3 dB acoustic loss between 10kHz and 20kHz
Luma Clear AT + Luma Noir AT backing: 1.7 dB acoustic loss between 10kHz and 20kHz
Luma Clear AT: 1.3 dB acoustic loss between 10kHz and 20kHz
Luma Clear AT + Luma Noir AT backing: 1.7 dB acoustic loss between 10kHz and 20kHz
Acoustic Transparency Testing

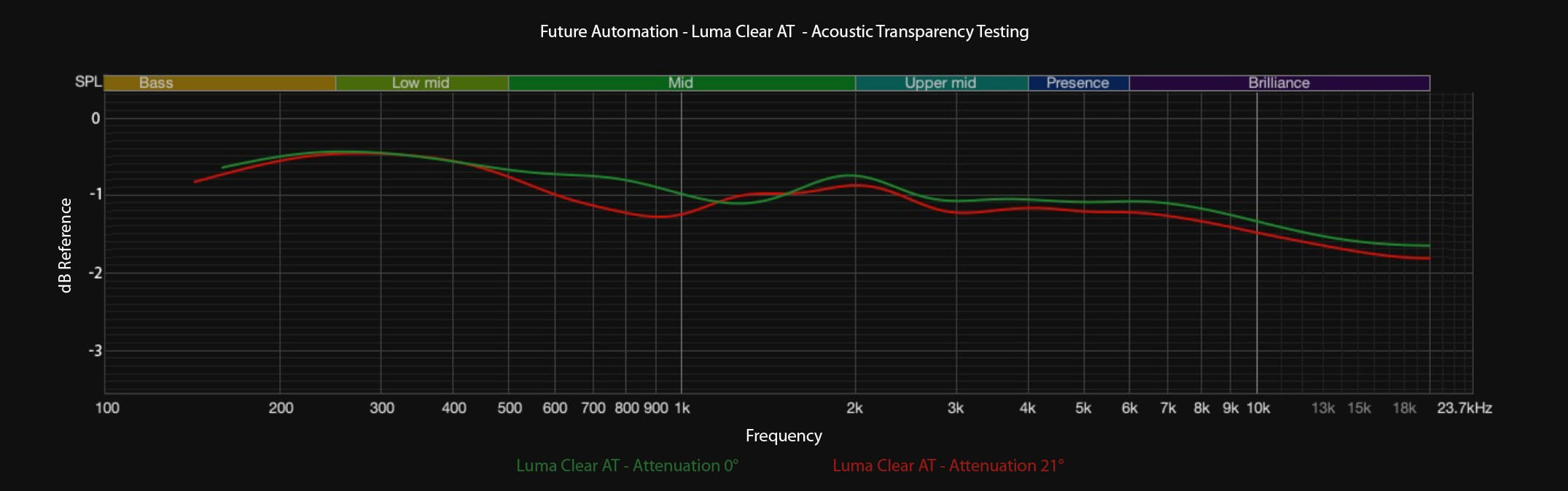

Luma Clear AT Acoustic Transparency Testing

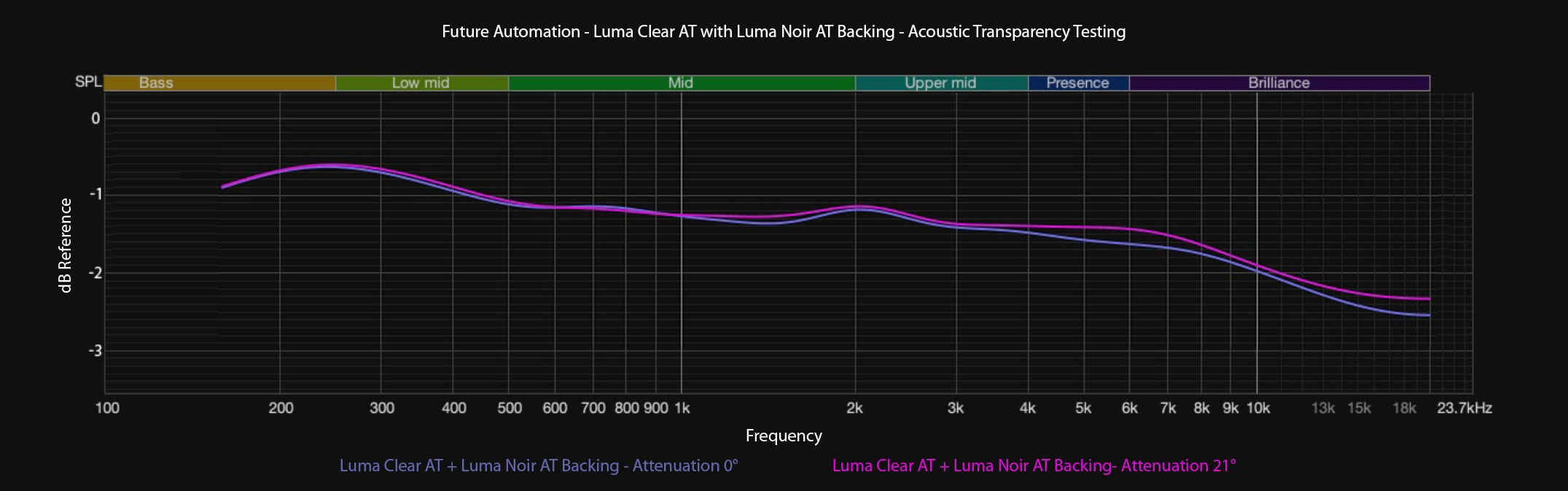

LUMA CLEAR AT with LUMA NOIR AT Backing Layer Transparency Testing
SCREEN SIZES
Screen sizes are divided into bands for easier specification. When ordering, please provide the required screen width, height, and aspect ratio (Custom larger sizes available upon request).
| PRODUCT | MAX WIDTH | COMPATIBLE SCREEN RATIOS |
|---|---|---|
| LUMA-SLIM-3000 / LUMA-ZERO-3000 | UP TO 3000MM / 118" | 16:10, 16:9, 2.35:1, 2.39:1 & 2.4:1 |
| LUMA-SLIM-3600 / LUMA-ZERO-3600 | UP TO 3600MM / 141" | 16:10, 16:9, 2.35:1, 2.39:1 & 2.4:1 |
| LUMA-SLIM-4200 / LUMA-ZERO-4200 | UP TO 4200MM / 165" | 16:10, 16:9, 2.35:1, 2.39:1 & 2.4:1 |
| LUMA-SLIM-4800 / LUMA-ZERO-4800 | UP TO 4800MM / 188" | 16:10, 16:9, 2.35:1, 2.39:1 & 2.4:1 |
| LUMA-SLIM-5400 / LUMA-ZERO-5400 | UP TO 5400MM / 212" | 16:10, 16:9, 2.35:1, 2.39:1 & 2.4:1 |
AMBIENT LED LIGHTING INTEGRATION
Integrated LED diffuser channels around the perimeter accommodate LED tape (supplied separately) for refined backlighting.
MAGNETIC TRIMS
Hand-wrapped in luxurious black velvet for optimal light absorption, magnetically mounted for seamless installation, maintenance, and a polished aesthetic (Slim Models).
LUMA-SHIFT
OPTIONAL 2-WAY MASKING
Available in either vertical or horizontal format, the LUMA-SHIFT provides masking to adapt the screen size to match the aspect ratio of the media source.
Compatible with LUMA-SLIM.
FIND OUT MORE
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | LUMA-SCOPE-SLIM | LUMA-SCOPE-ZERO |
|---|---|---|
| ACOUSTIC TRANSPARENCY |
1.3DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT 1.7DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT & NOIR AT BACKING |
1.3DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT 1.7DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT & NOIR AT BACKING |
| FLAME RESISTANT | YES | YES |
| IMAGE GAIN | 0.7 | 0.7 |
| IMAGE RESOLUTION | 4K/8K | 4K/8K |
| MATERIAL STRUCTURE | WOVEN CORE WITH SPECIAL COATING | WOVEN CORE WITH SPECIAL COATING |
| MATERIAL TYPE | FRONT PROJECTION | FRONT PROJECTION |
| SCREEN BEZEL | 40MM [1 9/16"] | 3.5MM (1/8") |
| DOWNLOADS / SUPPORT | ||
| TECHNICAL SHEET |
 LUMA-SCOPE TECH
|
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| ACOUSTIC TRANSPARENCY | LUMA-SCOPE-SLIM |
1.3DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT 1.7DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT & NOIR AT BACKING |
| LUMA-SCOPE-ZERO |
1.3DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT 1.7DB OF ACOUSTIC LOSS BETWEEN 10KHZ AND 20KHZ - LUMA CLEAR AT & NOIR AT BACKING |
|
| FLAME RESISTANT | LUMA-SCOPE-SLIM | YES |
| LUMA-SCOPE-ZERO | YES | |
| IMAGE GAIN | LUMA-SCOPE-SLIM | 0.7 |
| LUMA-SCOPE-ZERO | 0.7 | |
| IMAGE RESOLUTION | LUMA-SCOPE-SLIM | 4K/8K |
| LUMA-SCOPE-ZERO | 4K/8K | |
| MATERIAL STRUCTURE | LUMA-SCOPE-SLIM | WOVEN CORE WITH SPECIAL COATING |
| LUMA-SCOPE-ZERO | WOVEN CORE WITH SPECIAL COATING | |
| MATERIAL TYPE | LUMA-SCOPE-SLIM | FRONT PROJECTION |
| LUMA-SCOPE-ZERO | FRONT PROJECTION | |
| SCREEN BEZEL | LUMA-SCOPE-SLIM | 40MM [1 9/16"] |
| LUMA-SCOPE-ZERO | 3.5MM (1/8") | |
