LSH-MO TECH SPECS
OUTDOOR MARINE HEAVY DUTY TV LIFT

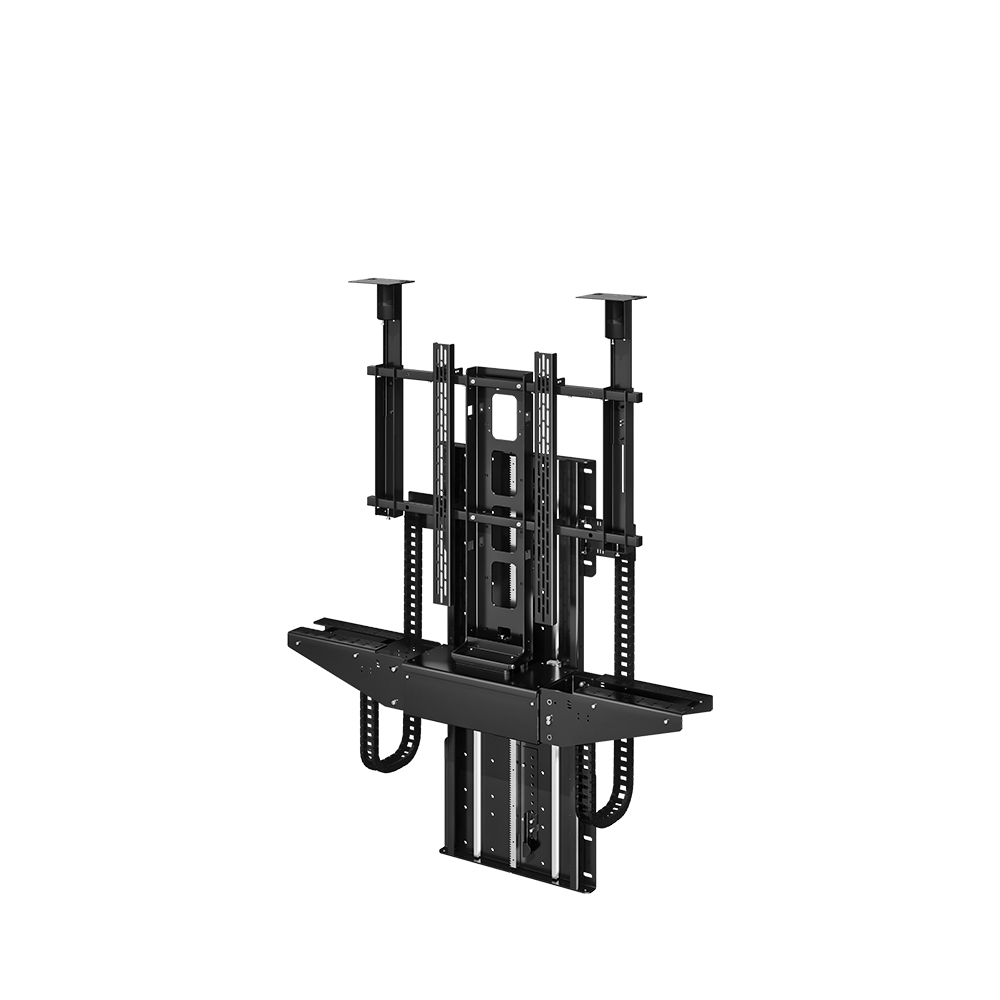

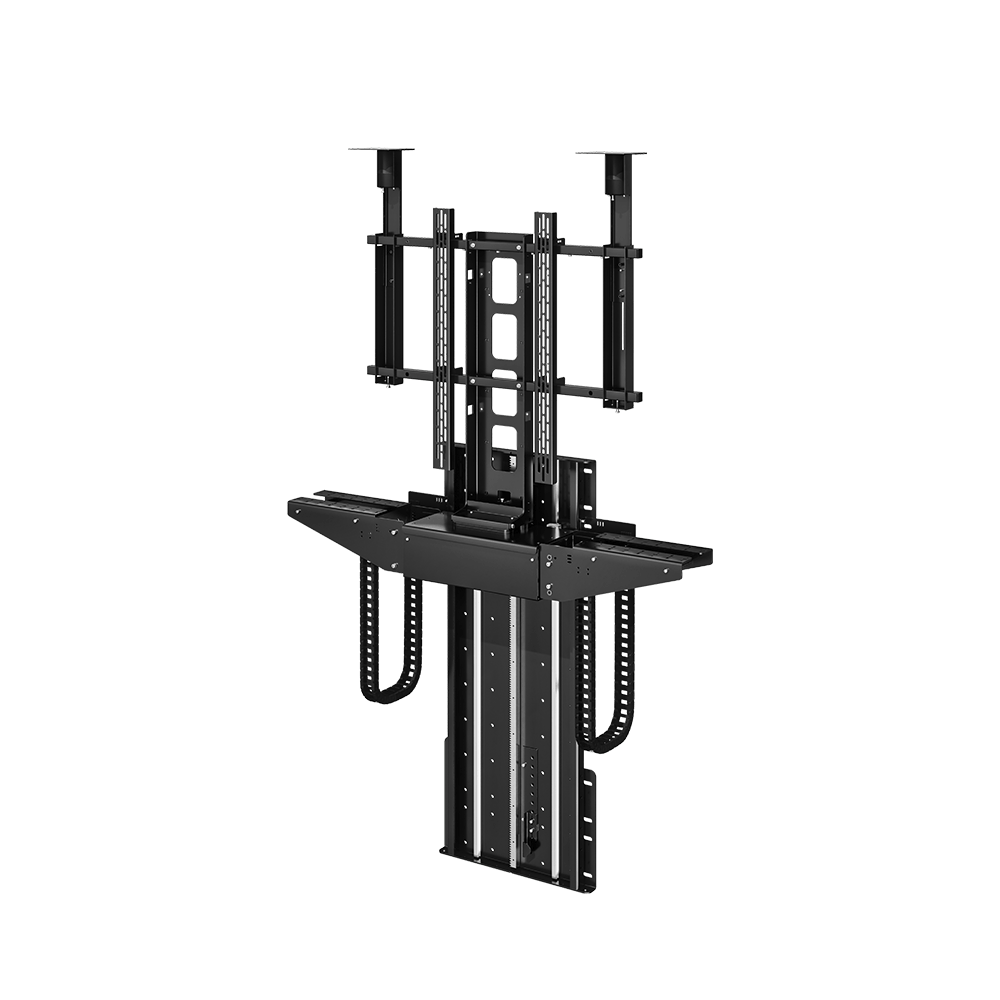

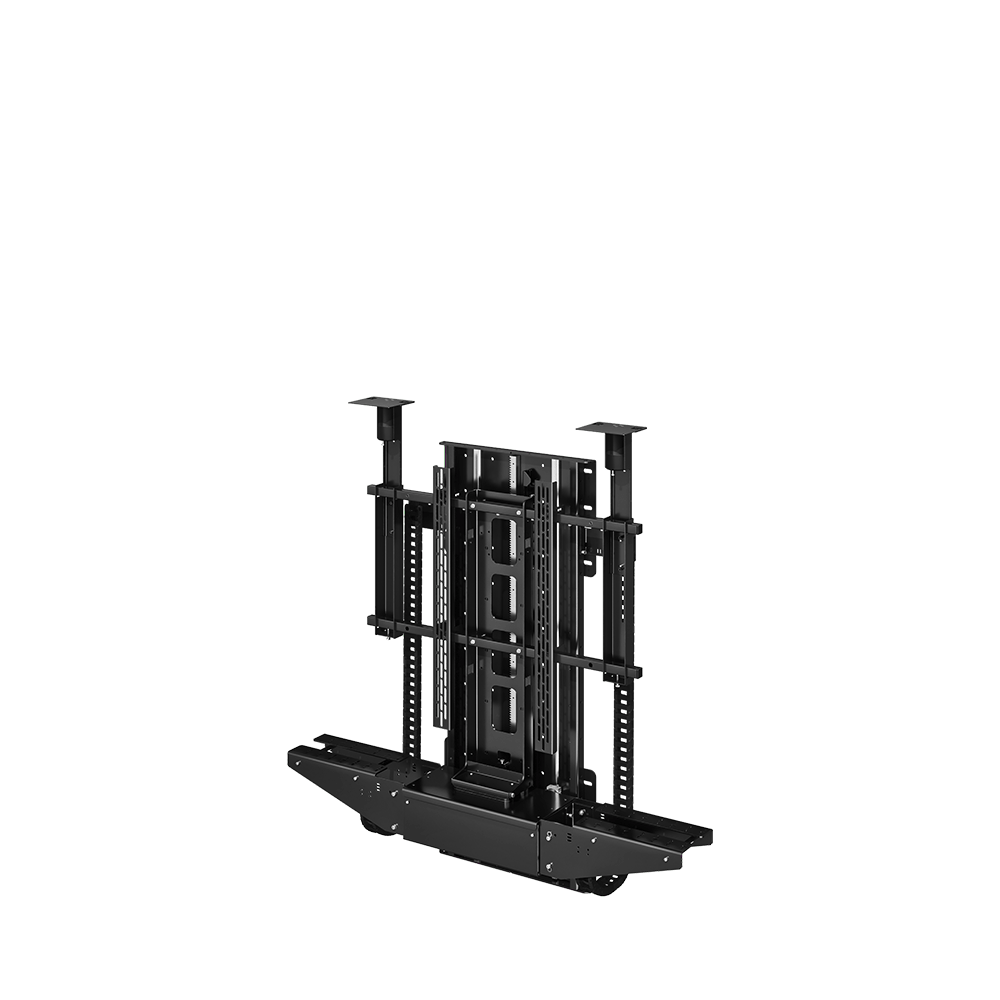

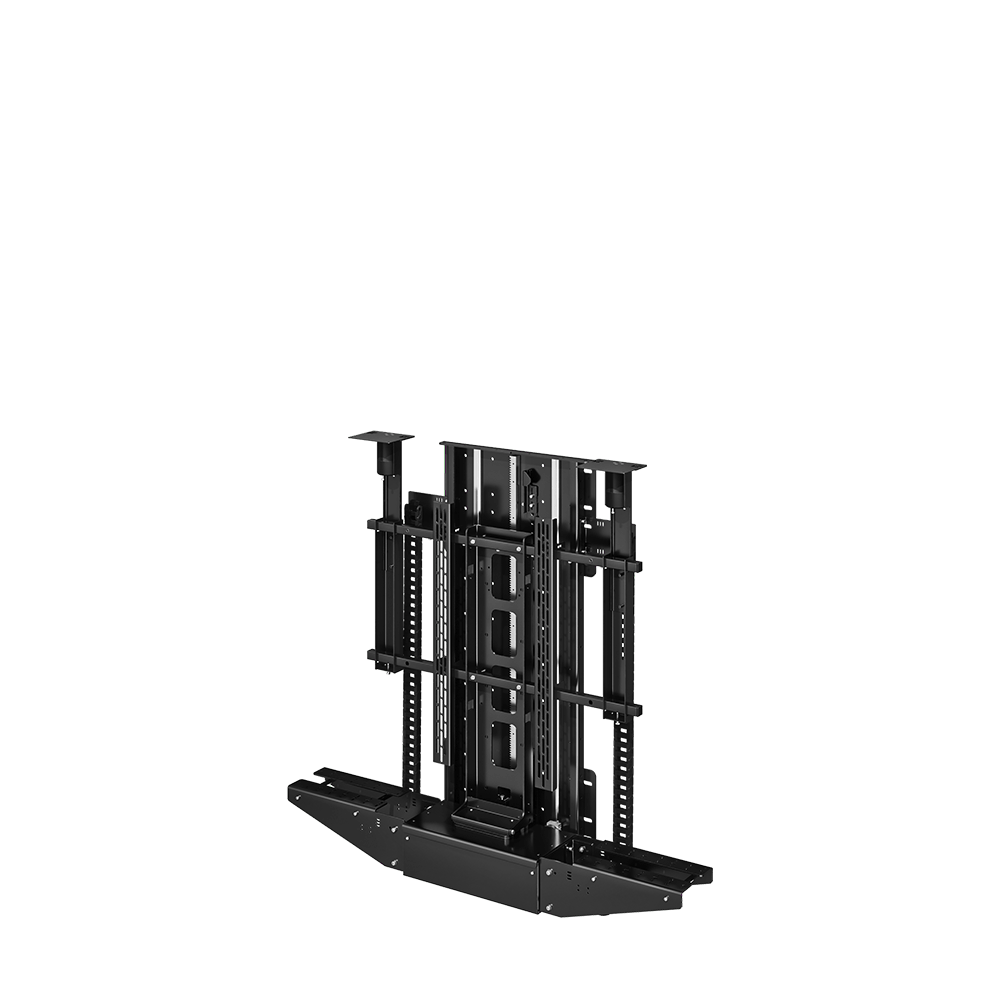

The LSH-MO Lift System Heavy Marine Outdoor is a premium TV lift mechanism designed to elegantly conceal large displays within furniture, cabinetry, or architectural joinery.
Engineered for smooth, reliable operation and exceptional stability, the mechanism raises the screen vertically into view at the touch of a button before returning it discreetly
out of sight when not required.
Outdoor suitable features include a sealed lifting beam, stainless steel components and an IP rated control box, all designed to handle the environmental strains typically put on outdoor systems.
Available in a range of sizes to accommodate displays from 55" to 85", the LSH-MO range provides designers and integrators with a highly versatile concealment solution.
Optional swivel, and high-power servo configurations enable truly bespoke installations for luxury residential, marine and commercial environments.
| LSH-MO IS AVAILABLE IN 4 STANDARD SIZES | |||||
|---|---|---|---|---|---|
| APPROX SCREEN SIZE | INTERNAL CABINET HEIGHT | MIN SCREEN HEIGHT | MAX SCREEN HEIGHT | MAX WEIGHT | PRODUCT |
| 55" | 1050mm [41 5/16"] |
680MM [26 3/4"] |
800MM [31 1/2"] |
100KG [220LBS] |
LSH5 |
| 65" | 1170mm [46 1/16"] |
800MM [31 1/2"] |
920MM [36 1/4"] |
100KG [220LBS] |
LSH6 |
| 75" | 1290mm [50 13/16"] |
920MM [36 1/4"] |
1040MM [40 15/16"] |
100KG [220LBS] |
LSH7 |
| 85" | 1410mm [55 1/2"] |
1040MM [40 15/16"] |
1160MM [45 11/16"] |
100KG [220LBS] |
LSH8 |
STANDARD LID OPTIONS
As standard the LSH allows for either a full box enclosure or a floating lid to be installed to match surrounding joinery.
BOX ENCLOSURE
(BE)
(BE)
A complete enclosure that hides the rear of the screen when in the out position.
FIXED PANEL
(FP)
(FP)
A simple floating lid that matches surrounding joinery when in the closed position.
UPGRADE LID OPTIONS
The LSH can be specified with a motorised hinging flap or fully hidden drop & slide panel.
DROP & SLIDE
(DSP)
(DSP)
A motorised panel that drops and slides into the joinery, hidden when in the out position.
HINGING FLAP
(HF)
(HF)
A motorised hinging flap which opens and closes as the lift operates.
MHB INTERIORS
BESPOKE CABINETRY
Looking for a complete solution?
MHB Interiors can design and manufacture bespoke cabinetry for Future Automation TV lift mechanisms, creating furniture that is engineered from the outset to accommodate hidden technology.
The result is a refined, integrated installation where furniture and automation work together as a single solution.
LEARN MORE ABOUT MHB INTERIORSHAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | LSH5-MO | LSH6-MO | LSH7-MO | LSH8-MO |
|---|---|---|---|---|
| CONTROL OPTIONS (AS STANDARD) | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| CONTROL OPTIONS (OPTIONAL) | RF | RF | RF | RF |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 |
| INTERNAL CABINET HEIGHT | 1050MM [41 5/16"] | 1170MM [46 1/16"] | 1290MM [50 13/16"] | 1410MM [55 1/2"] |
| MAXIMUM LIFTING CAPACITY | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) | 100KG [220LBS] (HIGHER LIFTING CAPACITY OPTION AVAILABLE) |
| MAXIMUM SCREEN HEIGHT | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] | 1160MM [45 11/16"] |
| MINIMUM SCREEN HEIGHT | 680MM [26 3/4"] | 800MM [31 1/2"] | 920MM [36 1/4"] | 1040MM [40 15/16"] |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| DOWNLOADS / SUPPORT | ||||
| TECHNICAL SHEET |
 LSH5-MO TECH
|
LSH6-MO TECH
|
LSH7-MO TECH
|
LSH8-MO TECH
|
| SAFETY DOCUMENTS |
LSH-BE (BOX ENCLOSURE) INTEGRATION CONSIDERATIONS
LSH (FIXED LID) INTEGRATION CONSIDERATIONS
|
|||
| CAD |
 LSH5-MO CAD
|
LSH6-MO CAD
|
LSH7-MO CAD
|
LSH8-MO CAD
|
